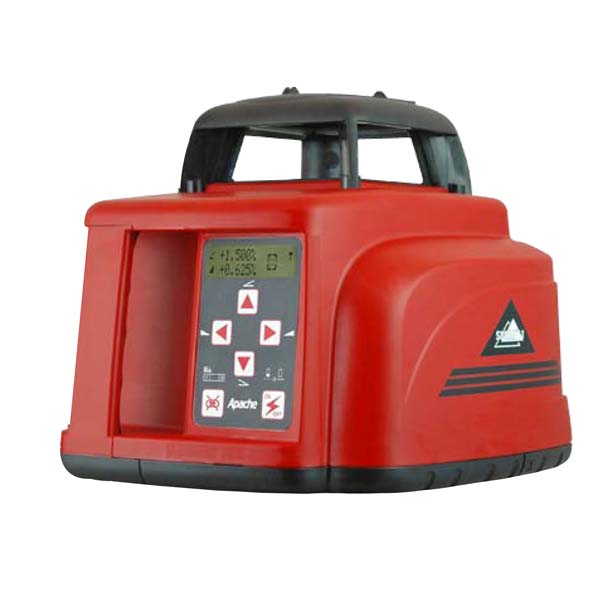

The Apache Summit1 is a fully automatic dial-in single grade laser level with vertical capability and a 'mm' display laser receiver.

Designed for single grade applications, the Summit1 features automatic electronic self levelling in horizontal, vertical AND grade modes. Automatic temperature compensation keeps the laser consistantly acccurate, eliminating the problems usually associated with non self levlling grade lasers.

The Summit1 has a single grade range of between -10 and +15% with the addition of a manual override for steep slope applications.
The grade incriments are 0.001% (0.01% over 10%).

For ease of use, the 2 way radio remote control allows all keypad operations to be performed upto 100 meters away from the laser.

The Summit1 has advanced features such as,

Axis Masking
Axis masking eliminates interference with other crews on the jobsite. In this mode, the user can "shut off" some of the glass windows, making the laser emit from just one or two, in direction of their work.

Unlike many specialist slope or grade lasers, the Summit1 has the ability to be used for vertical levelling. Self levelling in this mode, it can then be used for stringline setout and alignment.

Storm 'mm' display Laser Receiver
In the standard package is the advanced digital 'mm' display laser receiver.
Different to every other receiver on the market, it display's the exact amount of millimetres (high or low) to level on the easy to read large LCD display.

Applicable building, contracting and construction uses for the Summit1 include drainage, roading, civil earthworks, carparks, sporting fields or any application that requires a fall of level in two directions.

The Apache Summit1 single grade laser is covered by a 2 Year manufacturers warranty.

Once shipped from the manufacturer, Accurate Instruments' Calibration and Service Centres check and adjust all instruments on collimators and ranges, then fit them with the appropriate shockwatch, calibration sticker and issue a test calibration certificate.

Shockwatches a damage indicator that alert the user whether the instrument has been dropped.

The Apache Summit1 is checked, calibrated and certified by Accurate Instruments then fitted with a shockwatch.
