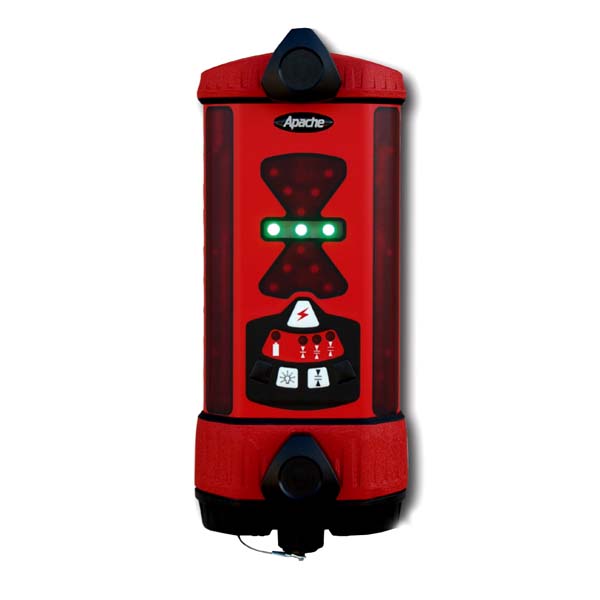

Apache Bullseye 3+

CODE: BOOM APACHE B3+

The Apache Bullseye 3+ is a heavy duty 360° laser receiver, designed to pick up the beam from a rotating laser level.
It is ideal for use with a wide range of earthmoving equipment such as excavators, backhoe, trenchers and dozers.

The Bullseye 3+ is used to check levels and digging heights/depths without having to get out of the cab of the machine.
The Bullseye 3+ will detect/pick up the rotating beam of a laser level, which is mounted on a tripod away from the machine.
The super bright LED lights, which can be seen from inside the cab, indicate above, level and below grade. There are 2 brightness modes and 3 selectable accuracy modes to let the operator work from rough grading & cutting to final finishing pre work.

The Bullseye 3+ features built-in clamps which attach to round or square tubes between 38 -50mm diameter.

An optional MM2 heavy duty magnetic mount (see the bottom of the page) with a 42mm diameter pole, allows the user to change the Bullseye 3+ between different earthmoving equipment.

Optional rechargeable battery kits and 12V/24V power options are available.


Product specifications
.
- Reception Angle: 360°
- Detection Distance: Typically 460m
- Vertical Detection Range: 170mm
- Accuracy Fine Mode: +/-5mm
- Accuracy Standard Mode: +/-12mm
- Accuracy Coarse Mode: +/-32mm
- Battery Type: 4x C batteries
- Waterproof Rating: IP67
- Battery Life: Up to 75 hours
- Warranty: 2 Years

Standard package includes: Bullseye 3+, 4x C alkaline batteries, operating manual, hard carry case.

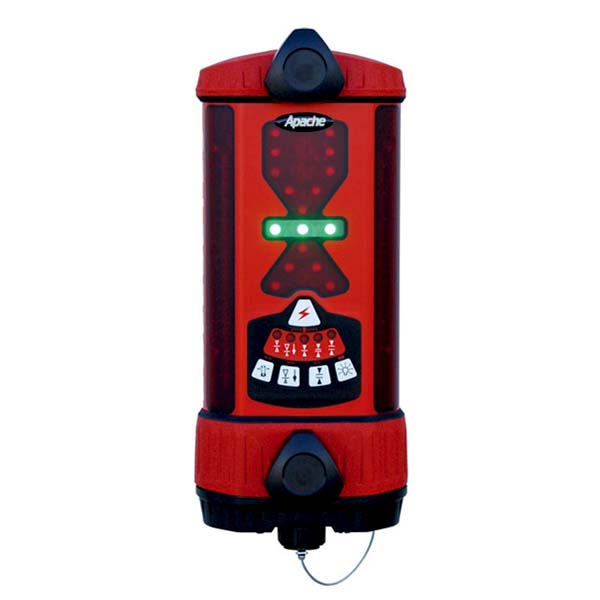

Apache Bullseye 5+

CODE: BOOM APACHE B5+

The Apache Bullseye 5+ is a heavy duty 360° laser receiver with a built-in plumb and blade tilt indicator.
It designed for use with a wide range of earthmoving equipment such as excavators, backhoe, trenchers and dozers.
It is used to check levels and digging heights/depths without having to get out of the cab of the machine.

Additional to the Bullseye 3+ model above, the 5+ features an "Excavating Dig Mode" function which allows the operator to move the "on-level" position for a greater receiving range when digging down.

The built-in plumb indicator also alerts the machine operator using the LED lights as to when the dipper arm of the machine is plumb therefore giving the correct level accuracy.

There are 2 brightness modes and 6 selectable accuracy modes (3 accuracy modes for grading, 3 for excavating) to let the operator work from rough grading & cutting to final finishing pre work.

An optional MM2 heavy duty magnetic mount (see the bottom of the page) with a 42mm diameter pole, allows the user to change the Bullseye 5+ between different earthmoving equipment.

Optional rechargeable battery kits and 12V/24V power options are available.


Product specifications
.
- Reception Angle: 360°
- Detection Distance: Typically 460m
- Vertical Detection Range: 170mm
- Accuracy Grading Fine Mode: +/-5mm
- Accuracy Grading Standard Mode: +/-10mm
- Accuracy Excavating Fine Mode: +/-12mm
- Accuracy Excavating Standard Mode: +/-25mm
- Accuracy Excavating Coarse Mode: +/-50mm
- Battery Type: 4x C batteries
- Waterproof Rating: IP67
- Battery Life: Up to 60 hours
- Warranty: 2 Years

Standard package includes: Bullseye 5+, 4x C alkaline batteries, operating manual, hard carry case.

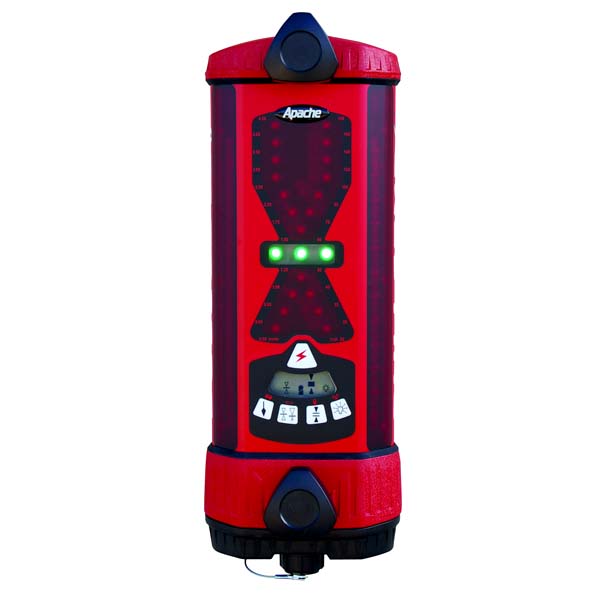

Apache Bullseye 6

CODE: BOOM APACHE B6

The Apache Bullseye 6 is a specially designed 360° laser receiver with built-in angle compensation and a plumb indicator.
The Angle Compensation automatically calculates and corrects the grade display for the angle of the dipper arm.
The user can check the grade with the dipper arm extended or retracted up to 30 degrees.

The "Excavating Dig Mode" feature of the Bullseye 6 allows the operator to move the "on-level" position for a greater receiving range when digging down.
The Bullseye 6 will detect/pick up the rotating beam of a laser level, which is mounted on a tripod away from the machine. The super bright LED lights, which can be seen from inside the cab, indicate above, level and below grade. There are 3 brightness modes and 6 selectable accuracy modes (3 accuracy modes for grading, 3 for excavating) to let the operator work from rough grading & cutting to final finishing pre work.

The Bullseye 6 features built-in clamps, which attach to round or square tubes between 38-50mm diameter.

An optional MM2 heavy duty magnetic mount (see bottom of the page) with a 42mm diameter pole, allows the user to change the Bullseye 6 between different earthmoving equipment.

The Bullseye 6 is supplied standard with rechargeable batteries. 12V/24V power options are available.

Product specifications
.
- Reception Angle: 360°
- Detection Distance: Typically 460m
- Vertical Detection Range: 220mm
- Accuracy Grading Fine Mode: +/-10mm
- Accuracy Grading Standard Mode: +/-20mm
- Accuracy Grading Wide Mode: +/-40mm
- Accuracy Excavating Fine Mode: +/-12mm
- Accuracy Excavating Standard Mode: +/-25mm
- Accuracy Excavating Coarse Mode: +/-50mm
- Battery Type: 4x C NiMH rechargeable batteries
- Waterproof Rating: IP67
- Battery Life: Up to 50 hours
- Warranty: 2 Years

Standard package includes: Bullseye 6, 4x C NiMH batteries, charger, operating manual, hard carry case.

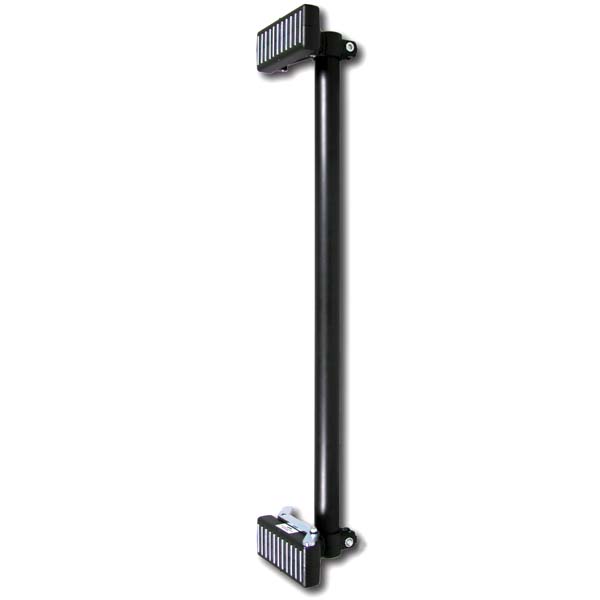

Apache MM2 Bullseye Magnetic Mount

CODE: BOOM APACHE MAG MOUNT

The heavy-duty MM2 Magnetic Mount from Apache mount is used to attach any of the Apache Bullseye receivers to the machine being used (e.g. backhoe or excavator).

Using magnets, it is designed to be swapped from either side of the machine in use or for multiple machines.

Two extra strong magnet banks combine for 900 pounds of holding force and can be moved up or down the 2" pole for easy locating on the machine.
To easily remove the MM2 mount, 1 of the mounts has a simple release lever to break the magnetic hold.

The pole length is 860mm and 42mm diameter.

Overall weight of pole and 2x magnetics is approx. 3.5kg.
