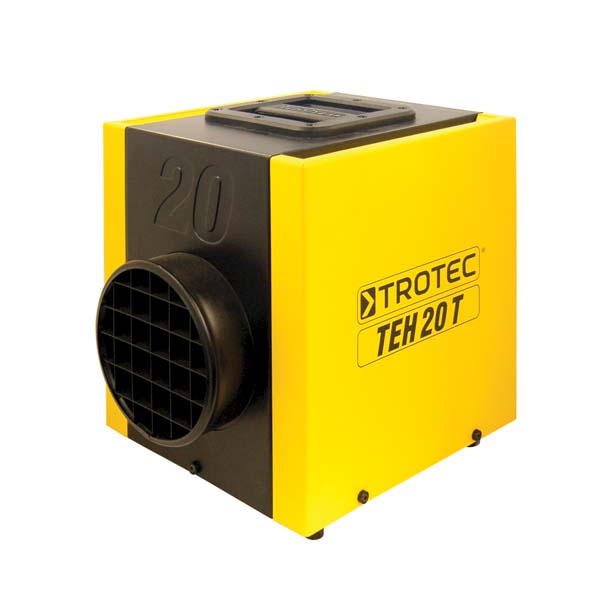

Trotec TEH20T

CODE: DEH TROTEC TEH20T

The Trotec TEH30T is a industrial high quality, made in Germany, 2.5kW electric heater.

This unit is suitable to operate/run on 15amp domestic and commercial 240V power supply.

Compared with the economical TDS10 model below, the TEH20T is manufactured from steel instead of aluminium.
It also facilities the use of thermal heating hoses up to 7.6 meters long, so heat can be directed exactly where it is needed.
The TEH20T is also manufactured and set up for stacking.

A professional heating device, the TEH20T is especially designed with a range of various industrial and commercial applications or rental use.

For use indoors, no inlet or outlet openings are needed, because no oxygen is used in the heating process of the TEH models. Thus, the condensation-free heating air from the TEH20T is perfect for heating of non-ventilated rooms, or for accelerating the speed of construction drying when used together with a condenser dehumidifier.

The heating elements of the TEH20T are controlled by a thermostat and only switch on to continuous operation when needed. A red indicator light shows when the heating elements are running.

Please note: If using a heater for drying of a building or damp environment, the use of a fan/ventilators and dehumidifiers will play a big part in the drying performance.


Product specifications
.
- Heating Capacity: 2.5 kW max
- Heating Modes: 1
- Airflow Rate: 185 m3/hour
- Input Voltage: 240V / 50Hz
- Power Consumption: 10.9A
- Built-in Thermostat: Yes
- Overheating Protection: Yes
- Weight: 9.7 kgs
- Dimensions: 330mm x 325mm x 260mm
- Warranty: 1 Year

Standard package includes: TEH20T, 2.6m length AUS/NZ plug, operating manual.

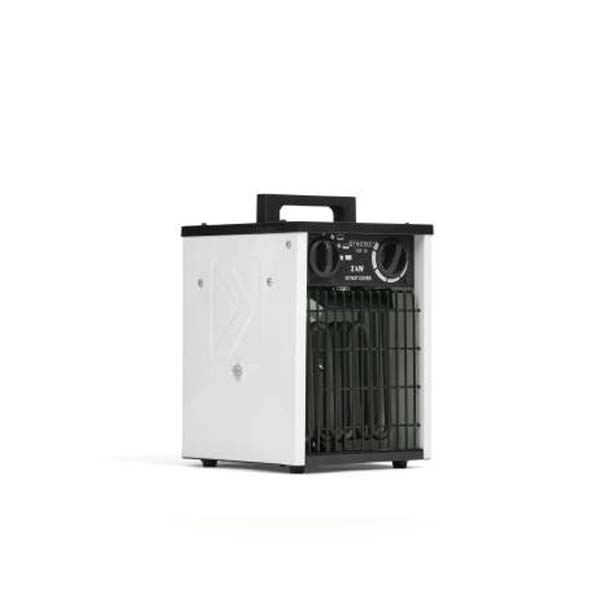

Trotec TDS10

CODE: DEH TROTEC TDS10

The Trotec TDS10 is a vertical compact, lightweight 230V electric heater.

This unit is suitable to operate/run on 10amp domestic power supply.

It is designed for residential and light commercial use as a DRY heating source for buildings, bathroom and painting rennovations, offices, warehouses etc.

The coated robust aluminium construction houses a thermally-insulated motor and an overheat thermostat.
The integrated room thermostat helps maintain a balance level of heat output of the TDS heating units.

The vertical rectangular design of the TDS10 combined with a maximum output of 2kW heater and 186m3/hour airflow make it useful for good general heat distribution onto a source in a small enviroment.

Please note: If using a heater for drying of a building or damp environment, the use of a fan/ventilators and dehumidifiers will play a big part in the drying performance.


Product specifications
.
- Heating Capacity: 2 kW max
- Heating Modes: 3 steps (0.65, 1.3 & 2kW)
- Airflow Rate: 186 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 8.7A
- Built-in Thermostat: Yes
- Overheating Protection: Yes
- Weight: 3.7 kgs
- Dimensions: 320mm x 230mm x 198mm
- Warranty: 1 Year

Standard package includes: TDS10, 1.5m length AUS/NZ plug, operating manual.
