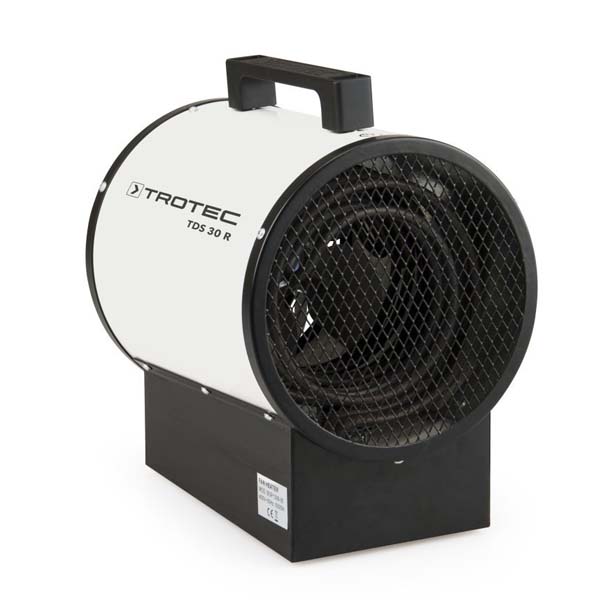

Trotec TDS30R

CODE: DEH TROTEC TDS30R

The Trotec TDS30R is a 5kW rounded heavy duty, commercial 3 phase electric heater.

Compared with conventional single phase heaters that struggle to emit large quantities of heat, 3 phase units utilise power supplies of up to 400V, providing much more heat.
The TDS30R features a 400V / 50Hz 3 phase power supply that does not operate on conventional residential power supply in New Zealand.
A 3 phase plug/power supply for your location will be required. This power supply is commonly used by commercial and industrial businesses in NZ.

It is designed for industrial and commercial use as a DRY heating source for large buildings, painting booths, factories, garages, warehouses etc.

The coated robust aluminium construction houses a thermally-insulated motor and an overheat thermostat.
The integrated room thermostat helps maintain a balance level of heat output of the TDS heating units.

The rounded design of the TDS30R combined with the 5kW heater and 580m3/hour airflow make it useful as a heat source for medium sized enviroments.

Please note: If using a heater for drying of a building or damp environment, the use of a fan/ventilators and dehumidifiers will play a big part in the drying performance.

For even more powerful heating, the TDS50R, 75R and 120 models, with heating upto 30kW are available on special request.

4 pin plugs and leads available upon request. Additional costs may apply.


Product specifications
.
- Heating Capacity: 5 kW max
- Heating Modes: 2 steps (2.5 & 5 kW)
- Airflow Rate: 580 m3/hour
- Input Voltage: 400V / 50Hz
- Power Consumption: 7.2A
- Built-in Thermostat: Yes
- Overheating Protection: Yes
- Weight: 4.8 kgs
- Dimensions: 275mm x 220mm x 330mm
- Warranty: 1 Year

Standard package includes: TDS30R, 1.2m length 3 phase 16A 5-pin plug, operating manual.

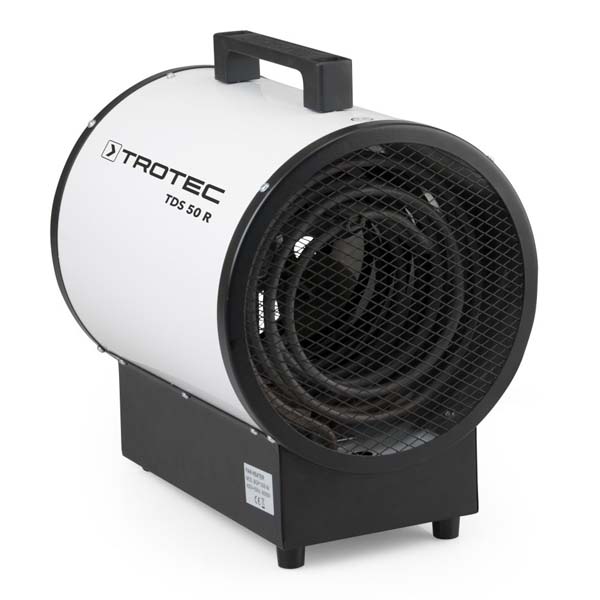

Trotec TDS50R

CODE: DEH TROTEC TDS50R

The Trotec TDS50R is a 9kW rounded heavy duty, commercial 3 phase electric heater.

Compared with conventional single phase heaters that struggle to emit large quantities of heat, 3 phase units utilise power supplies of up to 400V, providing much more heat.
The TDS50R features a 400V / 50Hz 3 phase power supply that does not operate on conventional residential power supply in New Zealand.
A 3 phase plug/power supply for your location will be required. This power supply is commonly used by commercial and industrial businesses in NZ.

It is designed for industrial and commercial use as a DRY heating source for large buildings, painting booths, factories, garages, warehouses etc.

Compared with the TDS30R model above, the 50R offers greater heat (9kW vs 5kW) and more airflow (844 m3/h vs 580 m3/h).

The coated robust aluminium construction houses a thermally-insulated motor and an overheat thermostat.
The integrated room thermostat helps maintain a balance level of heat output of the TDS heating units.

The rounded design of the TDS50R combined with the 9kW heater and 844 m3/hour airflow make it useful as a heat source for medium sized enviroments.

Please note: If using a heater for drying of a building or damp environment, the use of a fan/ventilators and dehumidifiers will play a big part in the drying performance.

For even more powerful heating, the TDS75R and 120 models, with heating upto 30kW are available on special request.

4 pin plugs and leads available upon request. Additional costs may apply.

Product specifications
.
- Heating Capacity: 9 kW max
- Heating Modes: 2 steps (4.5 & 9 kW)
- Airflow Rate: 8440 m3/hour
- Input Voltage: 400V / 50Hz
- Power Consumption: 13A
- Built-in Thermostat: Yes
- Overheating Protection: Yes
- Weight: 6.5 kgs
- Dimensions: 315mm x 250mm x 370mm
- Warranty: 1 Year

Standard package includes: TDS50R, 1.2m length 3 phase 16A 5-pin plug, operating manual.

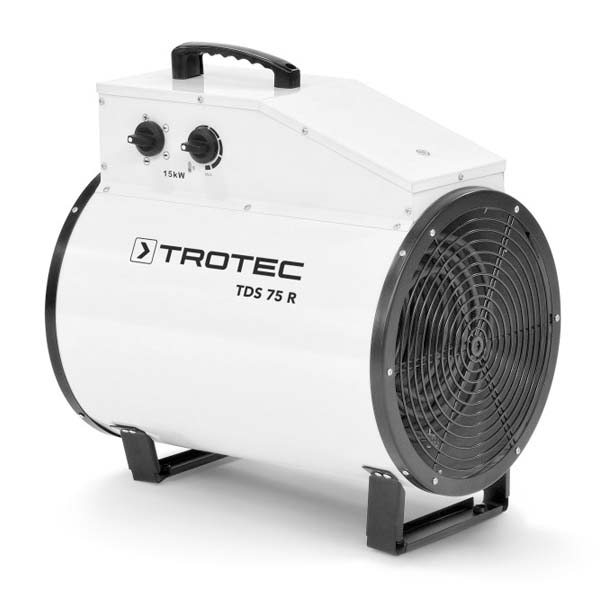

Trotec TDS75R

CODE: DEH TROTEC TDS75R

The Trotec TDS75R is a large capacity 15kW rounded heavy duty, commercial 3 phase electric heater.

Compared with conventional single phase heaters that struggle to emit large quantities of heat, 3 phase units utilise power supplies of up to 400V, providing much more heat.
The TDS75R features a 400V / 50Hz 3 phase power supply that does not operate on conventional residential power supply in New Zealand.
A 3 phase plug/power supply for your location will be required. This power supply is commonly used by commercial and industrial businesses in NZ.

It is designed for industrial and commercial use as a DRY heating source for large buildings, painting booths, factories, garages, warehouses etc.

Compared with the TDS30R and 50R models above, the 75R offers greater heat (15kW) and more airflow (1100 m3/h).

The coated robust aluminium construction houses a thermally-insulated motor and an overheat thermostat.
The integrated room thermostat helps maintain a balance level of heat output of the TDS heating units.

The rounded design of the TDS75R combined with the 15kW heater and 1100 m3/hour airflow make it useful as a heat source for medium-large sized enviroments.

Please note: If using a heater for drying of a building or damp environment, the use of a fan/ventilators and dehumidifiers will play a big part in the drying performance.

For even more powerful heating, the TDS120R model, with heating upto 30kW is available on special request.

4 pin plugs, adapters and leads available upon request. Additional costs may apply.


Product specifications
.
- Heating Capacity: 15 kW max
- Heating Modes: 3 steps (5, 10 & 15 kW)
- Airflow Rate: 1100 m3/hour
- Input Voltage: 400V / 50Hz
- Power Consumption: 21.7A
- Built-in Thermostat: Yes
- Overheating Protection: Yes
- Weight: 19 kgs
- Dimensions: 395mm x 380mm x 445mm
- Warranty: 1 Year

Standard package includes: TDS75R, 32A 3 phase 5-pin male connector, operating manual.
