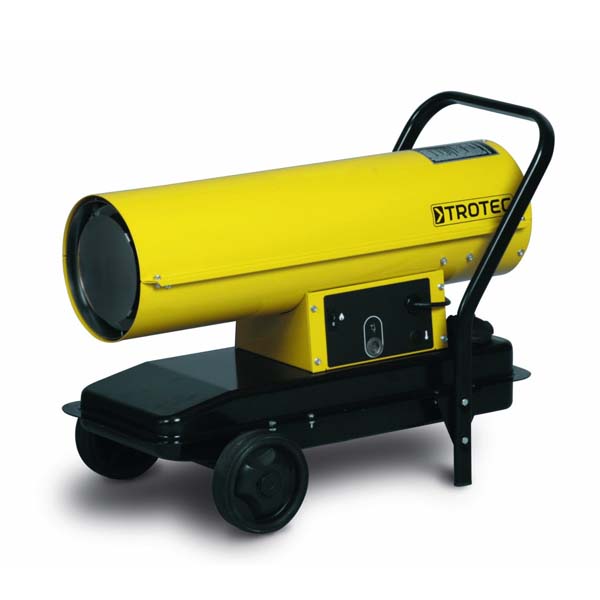

Trotec IDS20D

CODE: DEH TROTEC IDS20D

The Trotec IDS20D is a trade industry professional diesel direct-heating system, with a maximum heat output of 20kW (68242 BTU/hr).

Compared with electric heaters, diesel heaters have the ability to emit significantly higher volumes of heat. e.g. 20kW versus 2kW!

Diesel heaters are also a dry heat source when compared with gas heaters.

Manufactured in Europe, the IDS diesel heaters offer quality, performance and value for money, having long proved their worth when it comes to heating storerooms, workshops and garages, building sites, greenhouses and cowsheds both quickly and efficiently.

The sturdy direct heating units in the IDS Series are simple in design yet powerful in performance, providing super-fast and economic heating.
The IDS direct heaters also include an integrated fuel tank, fitted to the light yet sturdy undercarriage.
The double-walled, paint protected housing ensures an effective reduction in noise while at the same time significantly reducing the surface temperature of the outer casing. The oil heating units in the IDS Series are fully prepared for fully automatic thermostatic-controlled operation. This means that they can be connected with either an optionally available thermostat or a timer with integrated thermostat.
The extra large wheels allows you to transport easily around building sites and over rough and bumpy terrain.

All units are standard-equipped with an electronic flame safeguard, safety thermostat for overheat protection and fully automatic aftercooling.


Product specifications
.
- Heating Capacity: 20 kW max
- Airflow Rate: 350 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 1A
- Diesel Consumption: 2.04 L/hr
- Fuel Tank Capacity: 17 Litres
- Safety Thermostat: Yes
- Overheating Protection: Yes
- Weight: 20 kgs
- Dimensions: 760mm x 425mm x 320mm
- Warranty: 1 Year

Standard package includes: IDS20D, AUS/NZ plug, operating manual.

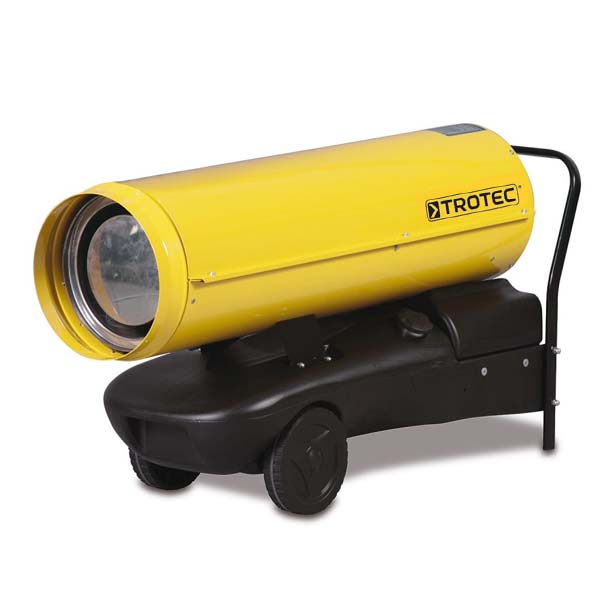

Trotec IDS30D

CODE: DEH TROTEC IDS30D

The Trotec IDS30D is a trade industry professional diesel direct-heating system, with a maximum heat output of 38kW (129661 BTU/hr).

Diesel heaters are also a dry heat source when compared with gas heaters.

Manufactured in Europe, the IDS diesel heaters offer quality, performance and value for money, having long proved their worth when it comes to heating storerooms, workshops and garages, building sites, greenhouses and cowsheds both quickly and efficiently.

The sturdy direct heating units in the IDS Series are simple in design yet powerful in performance, providing super-fast and economic heating.
The IDS direct heaters also include an integrated fuel tank, fitted to the light yet sturdy undercarriage.
The double-walled, paint protected housing ensures an effective reduction in noise while at the same time significantly reducing the surface temperature of the outer casing. The oil heating units in the IDS Series are fully prepared for fully automatic thermostatic-controlled operation. This means that they can be connected with either an optionally available thermostat or a timer with integrated thermostat.
The extra large wheels allows you to transport easily around building sites and over rough and bumpy terrain.

All units are standard-equipped with an electronic flame safeguard, safety thermostat for overheat protection and fully automatic aftercooling.


Product specifications
.
- Heating Capacity: 38.4 kW max
- Airflow Rate: 605 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 1.25A
- Diesel Consumption: 3.66 L/hr
- Fuel Tank Capacity: 42 Litres
- Safety Thermostat: Yes
- Overheating Protection: Yes
- Weight: 25 kgs
- Dimensions: 1050mm x 520mm x 400mm
- Warranty: 1 Year

Standard package includes: IDS30D, AUS/NZ plug, operating manual.

download PDF brochure

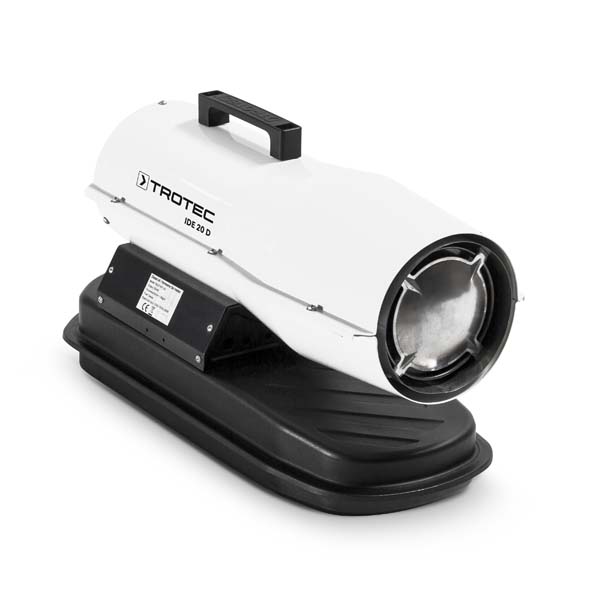

Trotec IDE20D

CODE: DEH TROTEC IDE20D

The Trotec IDE20D is an economical diesel direct-heating system, with a maximum heat output of 20kW (68242 BTU/hr).

Compared with the IDS series models above, the IDE models are a lower cost solution.
All IDE models are a reliable, cost-effective solution for typical heating applications on construction sites, in halls and workshops or in agriculture.

Diesel heaters are also a dry heat source when compared with gas heaters.

For temperature adjustment, all IDE models come equipped with an integrated thermostat, When the temperature has to be measured and controlled, the IDE models have the option of connecting an external thermostat.

All units are standard-equipped with an electronic flame trap, overheat protection and a stainless steel combustion chamber.


Product specifications
.
- Heating Capacity: 20 kW max
- Airflow Rate: 595 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 1A
- Diesel Consumption: 2 L/hr
- Fuel Tank Capacity: 19 Litres
- Safety Thermostat: Yes
- Overheating Protection: Yes
- Weight: 17 kgs
- Dimensions: 760mm x 550mm x 400mm
- Warranty: 1 Year

Standard package includes: IDE20D, AUS/NZ plug, operating manual.

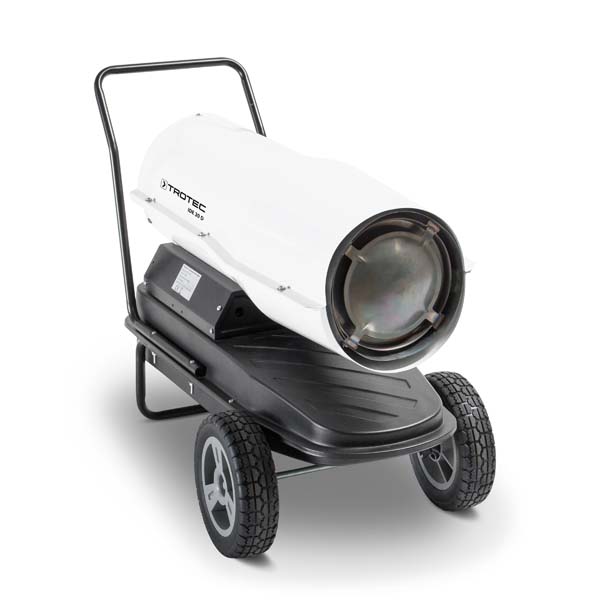

Trotec IDE30D

CODE: DEH TROTEC IDE30D

The Trotec IDE30D is an economical diesel direct-heating system, with a maximum heat output of 30kW (102364 BTU/hr).

Compared with the IDS series models above, the IDE models are a lower cost solution.
All IDE models are a reliable, cost-effective solution for typical heating applications on construction sites, in halls and workshops or in agriculture.

Diesel heaters are also a dry heat source when compared with gas heaters.

For temperature adjustment, all IDE models come equipped with an integrated thermostat, When the temperature has to be measured and controlled, the IDE models have the option of connecting an external thermostat.

The IDE30D also features extra large wheels which allows you to transport easily around building sites and over rough and bumpy terrain.

All units are standard-equipped with an electronic flame trap, overheat protection and a stainless steel combustion chamber.


Product specifications
.
- Heating Capacity: 30 kW max
- Airflow Rate: 720 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 1A
- Diesel Consumption: 3.9 L/hr
- Fuel Tank Capacity: 38 Litres
- Safety Thermostat: Yes
- Overheating Protection: Yes
- Weight: 20.8 kgs
- Dimensions: 925mm x 600mm x 460mm
- Warranty: 1 Year

Standard package includes: IDE30D, AUS/NZ plug, operating manual.

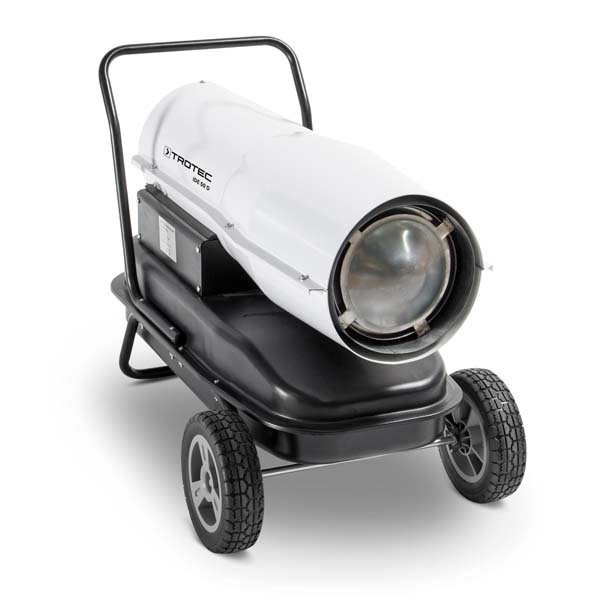

Trotec IDE50D

CODE: DEH TROTEC IDE50D

The Trotec IDE50D is an economical diesel direct-heating system, with a maximum heat output of 50kW (170607 BTU/hr).

Compared with the IDS series models above, the IDE models are a lower cost solution.
All IDE models are a reliable, cost-effective solution for typical heating applications on construction sites, in halls and workshops or in agriculture.

Diesel heaters are also a dry heat source when compared with gas heaters.

For temperature adjustment, all IDE models come equipped with an integrated thermostat, When the temperature has to be measured and controlled, the IDE models have the option of connecting an external thermostat.

The IDE50D also features extra large wheels which allows you to transport easily around building sites and over rough and bumpy terrain.

All units are standard-equipped with an electronic flame trap, overheat protection and a stainless steel combustion chamber.


Product specifications
.
- Heating Capacity: 50 kW max
- Airflow Rate: 1100 m3/hour
- Input Voltage: 230V / 50Hz
- Power Consumption: 1.5A
- Diesel Consumption: 5.1 L/hr
- Fuel Tank Capacity: 56 Litres
- Safety Thermostat: Yes
- Overheating Protection: Yes
- Weight: 27.3 kgs
- Dimensions: 1020mm x 620mm x 490mm
- Warranty: 1 Year

Standard package includes: IDE50D, AUS/NZ plug, operating manual.
