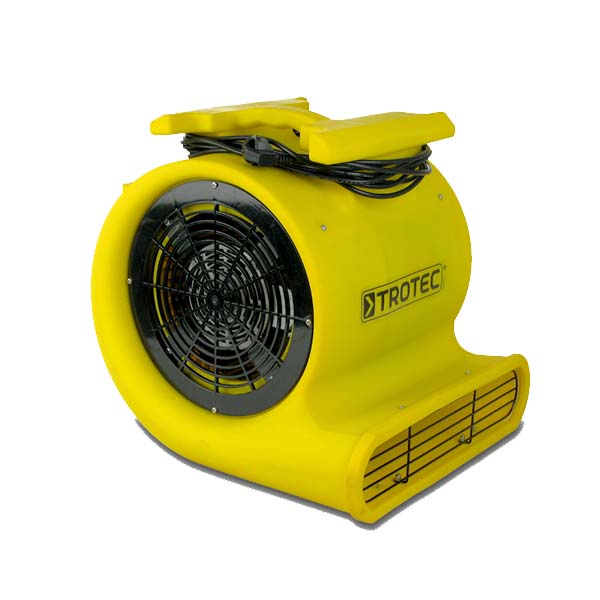

Trotec TFV30S

CODE: DEH TROTEC TFV30S

The TFV30S is a large powerful portable 3 stage turbo fan used primarily in the carpet drying and flood restoration industries.

It has 3 different fan speeds, with a maximum airflow of 2300m3/hour.

Turbo fans are especially well-suited for operation in carpet and cavity drying and water damage restoration. They perform well when used in conjunction with dehumidifiers.
The housing of the compact turbo fan is made of virtually indestructible polyethylene, which makes it lightweight, robust and extremely flexible.

The TFV30S is designed to be operated at different angles of 0°, 45° or 90°, whilst retaining a stable position at all 3 angles. This means the air can be blown across the floor or surface or into the surrounding air/room.
This unique combination of robust housing, high performance motor, flexible operating positions and excellent price performance ratio makes the TFV30S ideal as standard equipment for restoration and cleaning firms as well as builders and trade contractors.

Furthermore, a triple hose connector is optionally available which allows the air flow to be directed to three different spots using just the 1 fan.
If less than three hoses are used, the other connections are sealed.


Product specifications
.
- Airflow Rate: up to 2300 m3/hour
- Airflow Current: Blowout
- Power Consumption: 1.2kW max
- Noise Level: 73.5 - 86.2 dB (A)
- Weight: 16.8 kgs
- Dimensions: 545mm x 510mm x 495mm
- Warranty: 1 Year

Standard package includes: TFV30S, AUS/NZ power lead, operating manual.

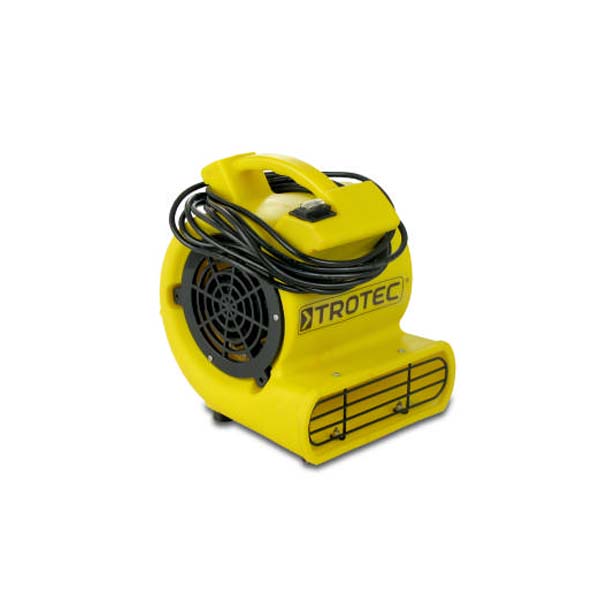

Trotec TFV10S

CODE: DEH TROTEC TFV10S

The Trotec TFV10S is a compact lightweight turbo fan designed for smaller and inaccessible places such as in-wall cavities, ceilings and sub floors or compact rooms such as bathrooms.

Turbo fans are especially well-suited for operation in carpet and cavity drying and water damage restoration.
They perform well when used in conjunction with dehumidifiers.

The housing of the compact turbo fan is made of virtually indestructible polyethylene, which makes it lightweight, robust and extremely flexible.

Compared with the much larger TFV30S, the 10S model is a single speed turbo fan with a airflow rate of 400m3/hour.

It is designed to be operated at different angles of 0°, 45° or 90°, whilst retaining a stable position at all 3 angles. This means the air can be blown across the floor or surface or into the surrounding air/room.

This unique combination of robust housing, compact size, flexible operating positions and excellent price performance ratio makes the TFV10S ideal as standard equipment for plumbers, tilers, cleaning and restoration firms as well as builders and trade contractors.


Product specifications
.
- Airflow Rate: 400 m3/hour
- Airflow Current: Blowout
- Power Consumption: 0.1kW max
- Noise Level: 61.5 dB (A)
- Weight: 3.75 kgs
- Dimensions: 300mm x 275mm x 330mm
- Warranty: 1 Year

Standard package includes: TFV10S, AUS/NZ power lead, operating manual.

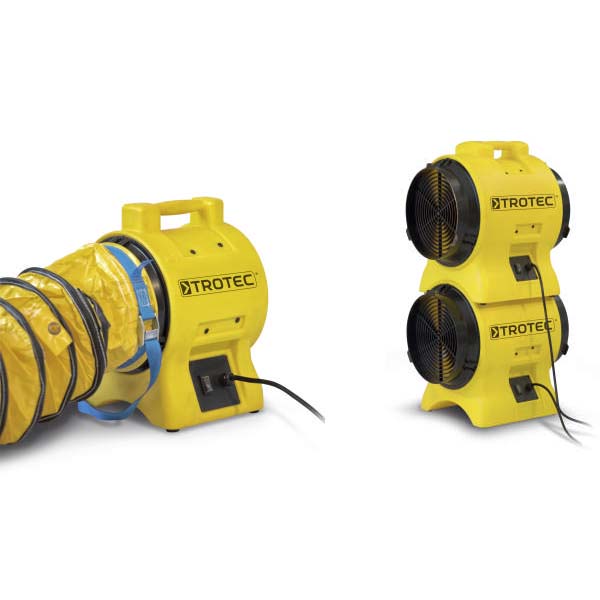

Trotec TTV1000S

CODE: DEH TROTEC TTV1000S

The Trotec TTV1000 is a compact axial fan/ventilator designed for confined space ventilation and general air movement in small environments.

It has a single speed operation of 600 m3/h airflow.

Whether used for the fresh air supply in poorly ventilated areas or for ventilation during channel construction or welding jobs, wherever large amounts of air have to be circulated moderately, quickly and easily in not too harsh circumstances, the axial fans of the TTV-S series are in their element. Just set it up, switch it on, all is done.

Using the optional 203mm polycarbonate adapter, flexible 7.6m hoses can be attached to the TTV1000 to distribute the air into confined spaces or to further away locations.
A washable 3m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.
The TTV1000S is also stackable.


Product specifications
.
- Airflow Rate: 600 m3/hour
- Airflow Current: Blowout
- Air Pressure: 100 PA
- Power Consumption: 0.37kW max
- Noise Level: 71 dB (A) at 3m
- Weight: 7.5 kgs
- Dimensions: 370mm x 270mm x 5400mm
- Warranty: 1 Year

Standard package includes: TTV1000, AUS/NZ power lead, operating manual

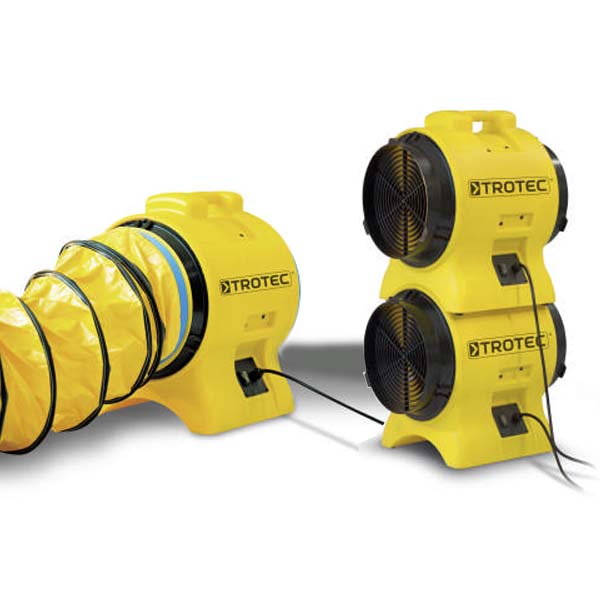

Trotec TTV2500S

CODE: DEH TROTEC TTV2500S

The Trotec TTV2500 is an axial fan/ventilator designed for confined space ventilation, building drying and general air movement.

It has a single speed operation of 2500 m3/h airflow.

Whether used for the fresh air supply in poorly ventilated areas or for ventilation during channel construction or welding jobs, wherever large amounts of air have to be circulated moderately, quickly and easily in not too harsh circumstances, the axial fans of the TTV-S series are in their element. Just set it up, switch it on, all is done.

Using the optional 305mm polycarbonate adapter, flexible 7.6m hoses can be attached to the TTV2500 to distribute the air into confined spaces or to further away locations.
A washable 3m dust bag can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.
The TTV2500S is also stackable.


Product specifications
.
- Airflow Rate: 2500 m3/hour
- Airflow Current: Blowout
- Air Pressure: 275 PA
- Power Consumption: 0.88kW max
- Noise Level: 79 dB (A) at 3m
- Weight: 14 kgs
- Dimensions: 500mm x 390mm x 550mm
- Warranty: 1 Year

Standard package includes: TTV2500, AUS/NZ power lead.

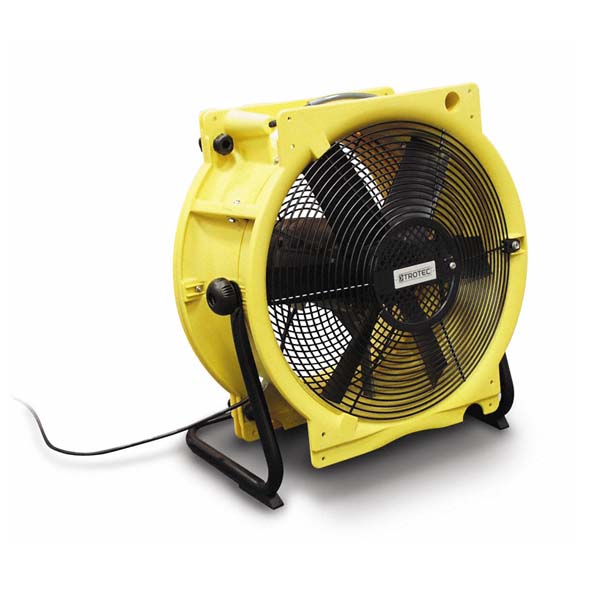

Trotec TTV4500HP

CODE: DEH TROTEC TTV4500HP

The TTV4500HP is a robust powerful axial fan/ventilator with a high pressure output of 250 Pa and a 3 stage airspeed of upto 4500 m3/h.

Thanks to the variable accessory modules available for the TTV4500 models, you only need one fan for an array of different applications.

Using the 457mm polycarbonate adapter, flexible 7.6m hoses can be attached to the TTV4500 to distribute the air into confined spaces or to further away locations.

Need to distibute the air into more than 1 room? Using the polycarbonate combo distributor, up to 8 x 100mm flexible hoses of 6m lengths can be attached to the TTV4500HP.

Washable 3m and 5m dust bags can also be attached to the rear of the fan and filters dust and dirt particles reliably out of the air.

With 3 powerful fan speeds of 2000, 3000 and 4500 m3/hour, the TTV4500HP is lightweight and portable making it useful for air circulation in large rooms and commercial areas.


Product specifications
.
- Airflow Rate: 4500 m3/hour
- Airflow Current: Blowout/Suction
- Power Consumption: 0.23kW max
- Noise Level: 53 dB (A)
- Weight: 12.5 kgs
- Dimensions: 510mm x 210mm x 210mm
- Warranty: 1 Year

Standard package includes: TTV4500HP, AUS/NZ power lead.
