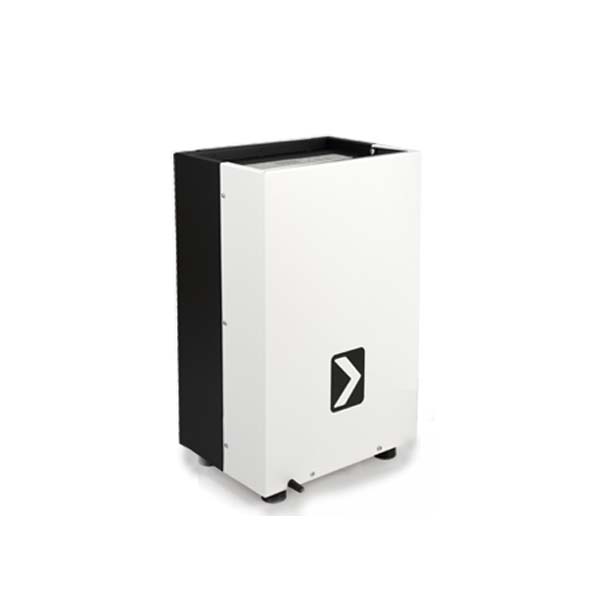

Trotec TTK105S

CODE: DEH TROTEC TTK105S

New for 2014, the TTK105S is a high quality, high performance domestic dehumidifier manufactured in Germany.

Based on Trotec's popular TTK-S commercial condensate dehumidifiers, the 105S is manufactured from lightweight yet durable aluminium.
Weighing only 14.5 kg's (which is extremely light for aluminium construction) and measuring just over 500mm in height, the 105S model is also stackable for multiple unit operation or storage.

Designed and built for all medium to large domestic drying applications, the TTK105S has a typical drying capacity of 28 litres per 24 hours with a maximum dehumidification ability of up to 30 litres per 24 hours.

Featuring Hygrostat control with real-time value humidity selection, the digital display allows the user to exactly set the desired climate conditions (i.e. intended humidity level desired).
The integrated hygrostat automatically regulates the performance of the compressor and the two-stage fan, allowing the machine to perform lower power consumption.
A full warning signal lights up when the water tank is full. Because of the overfill protection through an auto-off mode, unattended dehumidifying is possible.

For permanent operation, for example in a holiday home, the TTK105S has a connection for an external condensation drain. With the integrated timer you can even set the dehumidifying intervals.

At an air temp of approx. 20 deg C, the TTK125S is suitable for environmental drying control of a room size up to approx 150m³.

An optional fully-automatic condensate pump can also be used in place of a hose which can be connected to the drain outlet at the bottom of the unit to ensure that the water is properly drained off when used for unsupervised drying operations over a longer period.

The TTK105S is designed for private rooms like garages, hobby workshops, laundry rooms and cellars or workrooms like libraries, archives, computer and server rooms.


Product specifications
.
- Dehumidification Performance: Typical 28L per 24hrs. Max 30 Litres per 24hrs
- Airflow Rate: 240 m3/hour
- Typical Room Size For Drying: 100 - 200 cubic metres (at 20 deg C)
- Power Consumption: 0.52kW max
- Operating Range Temperature: 5 to 35 deg C
- Operating Range Humidity: 30 to 100% RH
- Water Tank Capacity: 5.2 Litres
- Noise Level: 50 dB (A)
- Weight: 14.5 kgs
- Dimensions: 517mm x 342mm x 250mm
- Warranty: 1 Year

Standard package includes: TTK105S, drainage bucket, AUS/NZ power lead, operating manual.

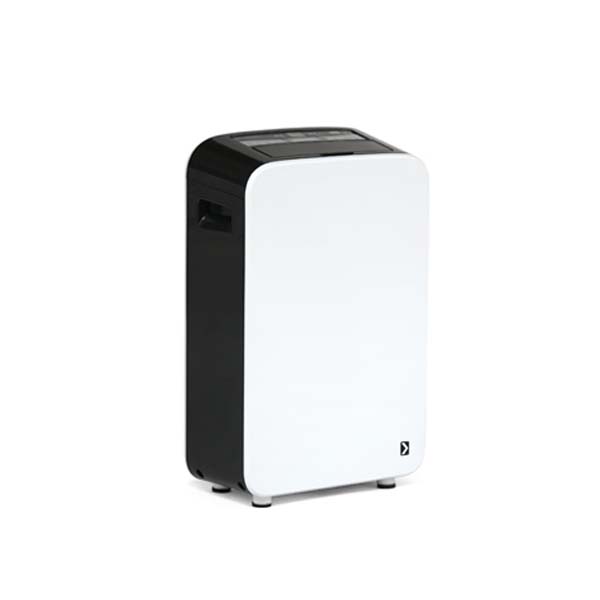

Trotec TTK71E

CODE: DEH TROTEC TTK71E

The Trotec TTK71E is a powerful high capacity home dehumidifier, suitable for large home drying applications.

It features a typical drying capacity of 20 litres per 24 hours with a maximum dehumidification ability of up to 24 litres per 24 hours.

It features a higher fan volume of 180m3 per hour when compared to the TTK31E below, with a 0.44 kW power draw.

The Easy-care control panel with a membrane keypad and digital display makes for simple operation.
Because of the timer function a time-controlled use is possible as well. Particularly comfortable is the standard filter cleaning display that automatically shows when the reusable air filter must be cleaned.

Another feature of the TTK71E is the adjustable air discharge direction control, allowing for better dehumidification performance.


Product specifications
.
- Dehumidification Performance: Typical 20L per 24hrs. Max 24 Litres per 24hrs
- Airflow Rate: 180 m3/hour
- Typical Room Size For Drying: 125 cubic metres (at 20 deg C)
- Power Consumption: 0.44kW max
- Operating Range Temperature: 5 to 35 deg C
- Operating Range Humidity: 49 to 100% RH
- Water Tank Capacity: 2 Litres
- Noise Level: 50 dB (A)
- Weight: 13 kgs
- Warranty: 1 Year

Standard package includes: TTK71E, drainage bucket, AUS/NZ power lead, operating manual.

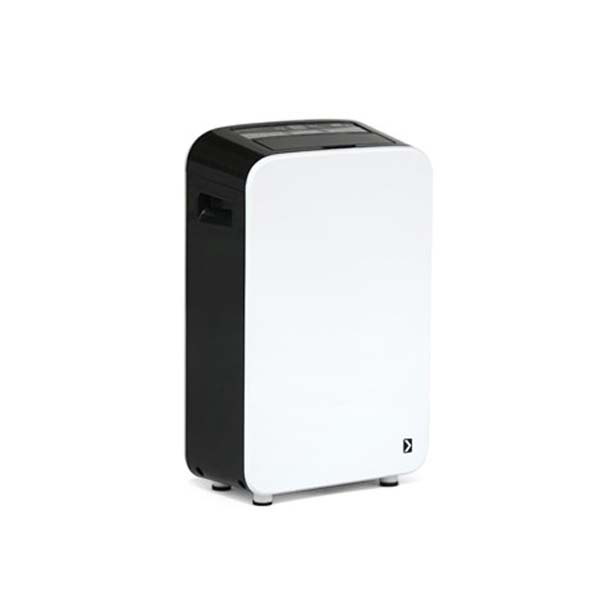

Trotec TTK31E

CODE: DEH TROTEC TTK31E

The Trotec TTK31E is a convenient home dehumidifier, suitable for small home drying applications.

It features a typical drying capacity of 10 litres per 24 hours with a maximum dehumidification ability of up to 12 litres per 24 hours.

The TTK31E features quiet condensate operation, a fan volume of 120m3 per hour, built in hygrostat control and a strong compressor with a 0.24 kW power draw.

The Easy-care control panel with a membrane keypad and digital display makes for simple operation.
Because of the timer function a time-controlled use is possible as well. Particularly comfortable is the standard filter cleaning display that automatically shows when the reusable air filter must be cleaned.

Another feature of the TTK31E is the adjustable air discharge direction control, allowing for better dehumidification performance.


Product specifications
.
- Dehumidification Performance: Typical 10L per 24hrs. Max 12 Litres per 24hrs
- Airflow Rate: 120 m3/hour
- Typical Room Size For Drying: 37 cubic metres (at 20 deg C)
- Power Consumption: 0.24kW max
- Operating Range Temperature: 5 to 35 deg C
- Operating Range Humidity: 49 to 100% RH
- Water Tank Capacity: 1.6 Litres
- Noise Level: 45 dB (A)
- Weight: 9 kgs
- Warranty: 1 Year

Standard package includes: TTK31E, drainage bucket, AUS/NZ power lead, operating manual.
