Trotec AC080V

CODE: TEMP TROTEC AC080V

Thermal Imaging has never been so easy to perform.

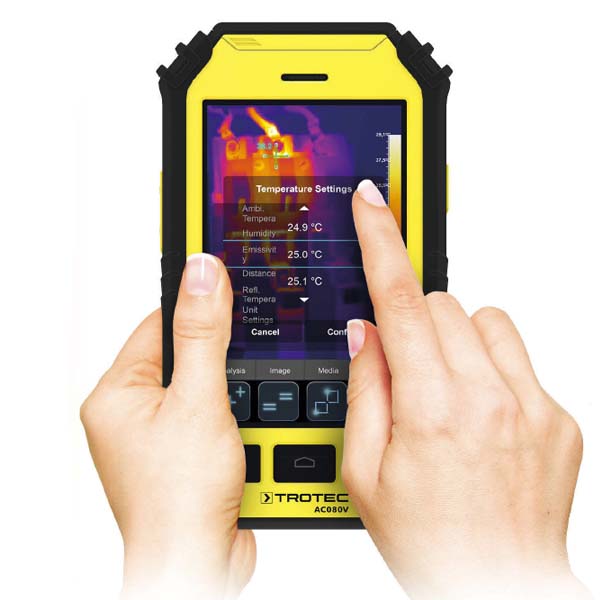

Introducing the new advanced Trotec AC080V thermal imaging + tablet.
The AC080V redefines mobile temperature measurement.

The base of the new AC080V is a perfectly shaped rugged 7" tablet utilising the Android operating system.
Integrated into the unit is a fully radiometric 160x 120 pixel infrared detector (19,200 pixels) with a thermal sensitivity of 80mK (0.08 °C) plus an 8 megapixel built-in digital camera for digital photographs.

The AC080V is designed for operators looking for an economical infrared camera to perform one of several thermal imaging tasks such as;
- Basic Building inspection and diagnostics
- Heat loss and insulation surveys
- Simple electrical fault inspection
- Underfloor heating etc

The AC080V model features the manual adjustments such as ranging (level & span) required by the user, to be able to perform these types of thermal surveys.

The fully radiometric AC080V also has the following additional features;
- 8MP Digital camera
- Realtime IR video recording
- 5 temperature measuring points
- Isotherm measurement and alarm
- Radiometric JPEG IR capture
- Onboard IR report wizard
- WiFi and USB data transfer


The biggest bonus of having a digital camera and infrared camera combined in the AC080V is taking both images (IR and digital) at once with the one camera.

This thermal imaging camera is available for HIRE.


Product specifications
.
- Detector Size: 160 x 120 (19,200 pixels)
- Thermal Sensitivity (NETD): 0.08° C
- Temperature Measuring Range: -20 to +350° C
- Refresh Rate: 50Hz
- Accuracy: +/- 2%
- Lens Size: 28°
- Zoom: No
- Screen Size: 5" full colour touchscreen
- Geometric Resolution: 3 mrad
- Emissivity Adjustment: Yes, 0.01 to 1.0
- Digital Camera: Yes, 8MP
- Fusion Imaging: Software only
- No. Of Measuring Points: 5 (4 manual, 1 automatic)
- Isotherm: Yes
- Automatic Max/Min Temp: Yes
- Laser Pointer: No
- Voice Recording: No
- Bluetooth: No
- Weight: 410 grams
- Battery Life: approx. 2 hours
- IP Rating: IP54
- Warranty: 1 Year

Standard package includes: AC080V with 28x21° in-built lens, 1x Li-Ion battery, battery charger, internal SD card memory, earphone kit, IR Report standard software download link, lcd screen protector, operating manual, camera test certificate.
