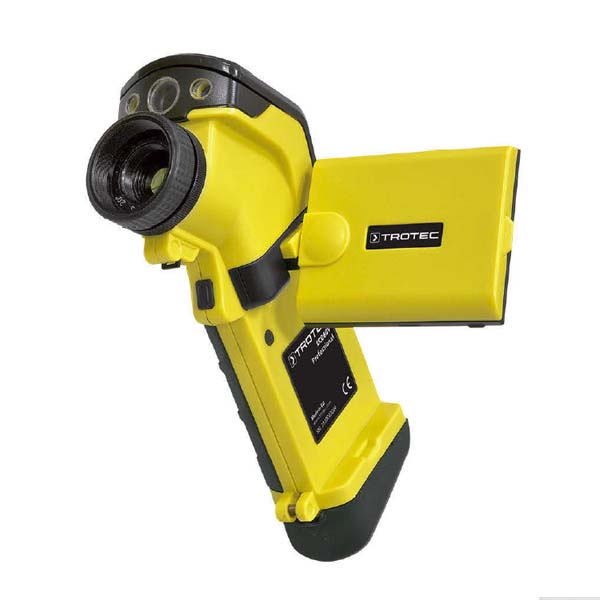

Trotec EC060V

CODE: TEMP TROTEC EC060V

The Trotec EC060V is Accurate Instrument's best selling general purpose infrared camera.

Featuring a 160x120 pixel infrared detector, 80mK (0.08 °C) thermal sensitivity, 20x 15° lens and built-in digital camera with Fusion imaging, the EC060V is a popular choice for operators looking for an economical infrared camera to perform one of several thermal imaging tasks such as;
- Building and pre purchase inspection
- Heat loss and insulation surveys
- Electrical fault inspection
- Underfloor heating etc

The EC060V model features the manual adjustments such as ranging (level & span), adjustable focussing etc, required by the user, to be able to perform these types of thermal surveys.

The fully radiometric EC060V also has the following additional features;
- Integrated laser pointer
- Digital camera
- Fusion imaging and moveable PIP (picture in picture)
- 5 temperature measuring points
- Isotherm measurement and alarm

Fusion Imaging & PIP
"Fusion" is the combination of both an "infrared" and a "conventional" photo.
Because the EC060V features a built-in digital lens with photo lamp, it allows the operator to overlay the thermal image ontop of a background digital photograph, and then control the level of transparency. By adjusting the transparency, the background image can provide more recognisable definition to the image whilst the foreground thermal image can indicate a thermal problem or anomoly.

The moveable PIP (picture in picture) setting means both the digital and infrared images can be aligned correctly in the Fusion mode.

The biggest bonus of having a digital camera and infrared camera combined in the EC060V is taking both images at once with the one camera.


Product specifications
.
- Detector Size: 160 x 120 (19,200 pixels)
- Thermal Sensitivity (NETD): 0.08° C
- Temperature Measuring Range: -20 to +250° C
- Refresh Rate: 50Hz
- Accuracy: +/- 2%
- Lens Size: 20°
- Zoom: No
- Screen Size: 2.5" tilt adjustable
- Geometric Resolution: 2.2 mrad
- Emissivity Adjustment: Yes, 0.01 to 1.0
- Digital Camera: Yes
- Fusion Imaging: Yes, PIP (Picture in Picture)
- No. Of Measuring Points: 5 (4 manual, 1 automatic)
- Isotherm: Yes
- Automatic Max/Min Temp: Yes
- Laser Pointer: Yes
- Voice Recording: No
- Bluetooth: No
- Weight: 500 grams
- Battery Life: approx. 3 hours
- IP Rating: IP54
- Warranty: 1 Year

Standard package includes: EC060V with 20x15° lens, 1x Li-Ion battery, battery charger, 2GB SD card, USB card reader, IR Report standard software download link, video out cable, lcd screen cover, docking station, operating manual, NZ quick reference guide, camera test certificate.

Optional hard transport case avaialble.
