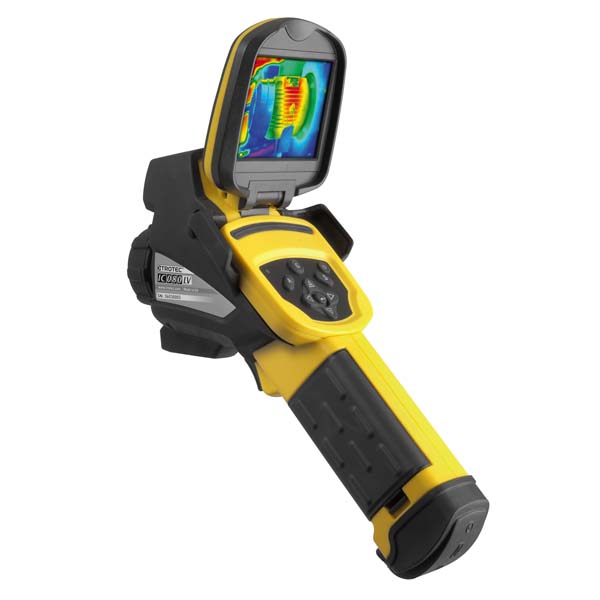

Trotec IC080LV

CODE: TEMP TROTEC IC080LV

Along with the bargain EC060V, the IC080LV is one of our best selling camera models.

The IC080LV has long been a popular choice for operators looking for a high resolution, high temperature multi-purpose infrared camera to perform a multitude of thermal imaging tasks such as;
- Machinery & Plant inspection
- Heating assessment
- Building and pre purchase inspection
- Heat loss and insulation surveys
- Equine & veterinary use
- Electrical fault inspection
- Underfloor heating etc.

Compared with the popular EC060V model, the IC080LV has a much higher 384 x 288 resolution pixel detector combined with a low 50mK (0.05° C) thermal sensitivity.
With over 110,000 pixels, the IC080LV has nearly 10x more pixels than a standard 160 x 120 detector.

Combined with a refresh imaging rate of 50HZ, a 24x18° lens and a 3.5" LCD display, the resulting image is crisp, sharp and defined.

Fusion Imaging & PIP
"Fusion" is the combination of both an "infrared" and a "conventional" photo.
Because the IC080LV features a built-in digital lens with photo lamp, it allows the operator to overlay the thermal image ontop of a background digital photograph, and then control the level of transparency. By adjusting the transparency, the background image can provide more recognisable definition to the image whilst the foreground thermal image can indicate a thermal problem or anomoly.

The moveable PIP (picture in picture) setting means both the digital and infrared images can be aligned correctly in the Fusion mode.

The biggest bonus of having a digital camera and infrared camera combined in the IC080LV is taking both images at once with the one camera.


Product specifications
.
- Detector Size: 384 x 288 (110,592 pixels)
- Thermal Sensitivity (NETD): 0.05° C
- Temperature Measuring Range: -20 to +600° C
- Refresh Rate: 50Hz
- Accuracy: +/- 2%
- Lens Size: 24°
- Zoom: No
- Screen Size: 3.5" tilt adjustable
- Geometric Resolution: 1.1 mrad
- Emissivity Adjustment: Yes, 0.01 to 1.0
- Digital Camera: Yes
- Fusion Imaging: Yes, PIP (Picture in Picture)
- No. Of Measuring Points: 4 (3 manual, 1 automatic)
- Isotherm: Yes
- Automatic Max/Min Temp: Yes
- Laser Pointer: Yes
- Weight: 650 grams
- Battery Life: approx. 2.5 hours
- IP Rating: IP54
- Warranty: 1 Year

Standard package includes: IC080LV with 24°x18° lens, 2x Li-Ion batteries, battery charger, 2GB mini SD card with adaptor, USB card reader, IR Report standard software download link, video out cable, lcd screen cover, operating manual, software manual, NZ quick reference guide, camera test certificate, hard carry case.
