A simple and reliable way of accurately locating leaks
The Ferret leak location system is an award winning device that delivers an innovative hydraulic solution for finding leaks in water pipes.
The patented technology provides a fast and accurate method for finding even the smallest leaks on smooth bore service pipelines made of plastic, copper and lead. The system is designed for pipes with diameters from 12mm (3/8") up to 50mm (2").
The system is designed to significantly reduce the amount of time and number of excavations required to pinpoint and repair leaks.
product features
- Simple push button operation, competent use requires minimal training
- Effective in plastic, copper and lead pipes
- Robust Head design with operating pressure from 1 to 5 Bar
- Interchangeable Heads for locating leaks in pipes with internal diameters from 10 to 40mm
- Heads pass easily through most types of joints and fittings
- Fifty metre leak location survey from each entry point
- In-built high resolution flow sensor that quantifies leaks from 0.03 to 25 litres per minute
- In-built line and end tracing features
- Portable device weighing less than 18Kg
The principle of the Ferret technology
The Ferret is an in-pipe tethered device that uses an innovative hydraulic process to accurately locate leaks, which makes it very effective in plastic pipes.

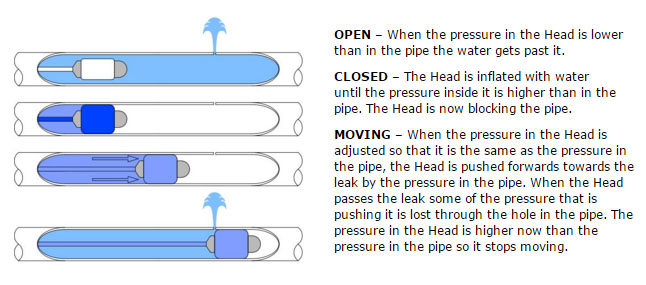

The system comprises of a loose fitting plug (the Head) that is introduced into the pipeline via an existing access point such as a meter or valve pit, or directly into the exposed pipeline. The system is powered by the water pressure in the pipe. The Head is inflatable and acts like a valve, which can be moved along the pipe to determine the exact position of the leak. The valve has three states – OPEN, CLOSED and MOVING. (see image below)
View the following video for more information on how the Ferret works.
