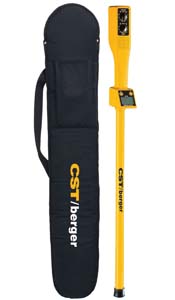

Magna Trak 100 with standard supplied soft padded bag

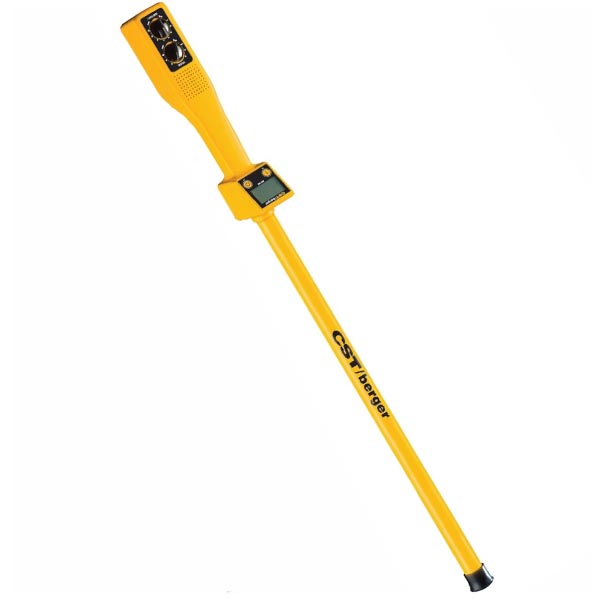

CST/berger Magna Trak 100

CODE: LOC CST 100

The CST/berger Magna Trak 100 is a simple to use lightweight yet durable magnetic locator designed for one hand operation.

The MT100 has a large easy to read LCD screen offering a digital bar graph strength indicator with numerical readout.
Combined with a standard adjustable audio tone, it is easy to precisely identify the target object, especially in noisy, congested areas.

An additional feature of the MT100 is a visual reminder when batteries are low.

The soft touch keypad membrane switchs allow simple on off operation of the MT100, whilst the volume and sensitivity are controlled by the adjutable knobs.


About CST/berger
The CST/berger Magna Trak range of magnetic locators are a very popular proven field tool for location of underground utilities and materials. If the material has ferrous (steel/iron) in it then the Magna Trak magnetic locators will find it, depending on depth and mass of the object. Land Surveyors especially enjoy using Magna Traks for finding rebar and pipe property corners and surveying markers.

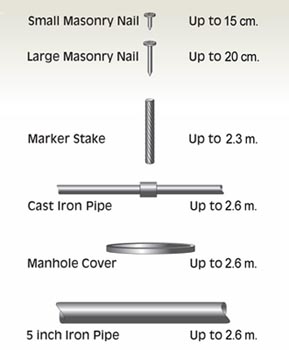

Target Depths

Standard package includes MT100 locator, 6x AA alkaline batteries, user guide and soft padded case.

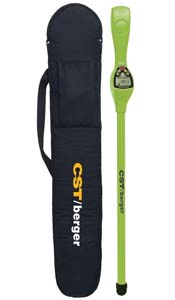

Magna Trak 202 with standard supplied soft padded bag

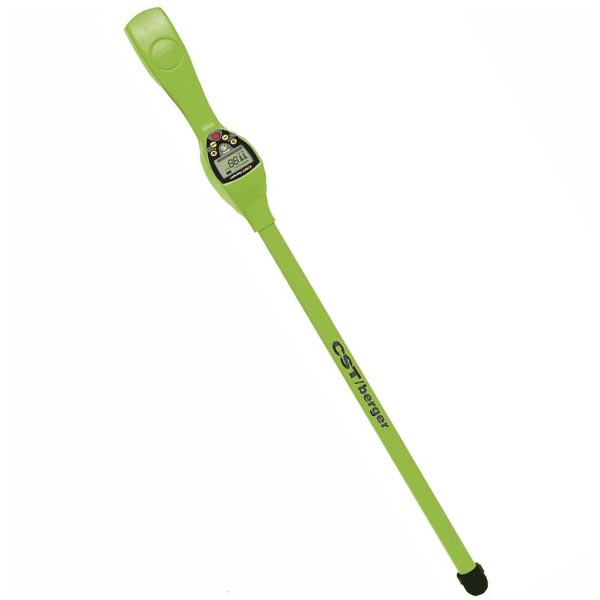

CST/berger Magna Trak 202

CODE: LOC CST 202

The CST/berger Magna Trak 202 is a high performance lightweight and ergonomic magnetic locator designed for one hand operation.

Compared with the more basic MT100 model above, the MT202 comes equipped with an erase function allow user to block out interference from objects such as metal fences.
Another key feature of the MT202 is the powerline inidcator, which cautions the user when an active power cable has been detected.

The large LCD display provides a digital readout and bar graph, allowing visual location, segmented battery level indicator and power line indicator simutaneosuly. The display will also indicate polarity of ferrous materials, allowing for tracing direction.
The keypad membrane switch allows the user to control volume and sensitivity with one hand whilst the water resistant housing protects the controls from dust and moisture.


About CST/berger
The CST/berger Magna Trak range of magnetic locators are a very popular proven field tool for location of underground utilities and materials. If the material has ferrous (steel/iron) in it then the Magna Trak magnetic locators will find it, depending on depth and mass of the object. Land Surveyors especially enjoy using Magna Traks for finding rebar and pipe property corners and surveying markers.


Target Depths

Standard package includes: MT202 locator, 6x AA alkaline batteries, user guide and soft padded case.
