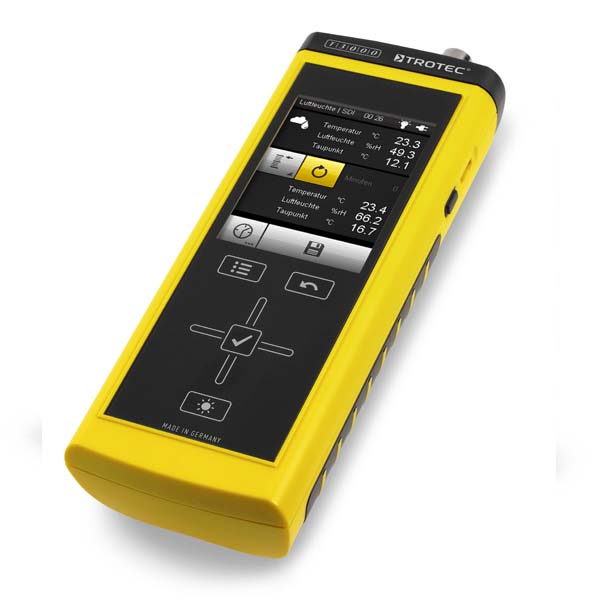

By itself, the T3000 does not perform any measurements.
To perform the vast array of measurements that the T3000 is capable of, Trotec offer a series of components and accessories that connect to the T3000.
These are listed and briefly described below;
|
| SENSORS |
|
TS131 Surface Temperature Sensor
3.5mmØ x 150mm length Stainless steel class 2 NTC contact SDi sensor with a surface temperature measurement range of -50° C to +150° C.
Accuracy is +/- 0.1° C (between 0 - 70° C).
|
 |
TS200 Relative Humidity/Air Temperature Sensor
12mmØ x 108mm length Polycarbonate SDi sensor with a temperature/dew point measurement range of -20° C to +70° C and relative humidity range of 0 to 98.0% RH.
Temperature accuracy is +/- 0.4° C (between -10 - +50° C).
Humidity accuracy is +/-2% RH.
|
 |
TS230 Relative Humidity/Air Temperature Sensor
High temperature 12mmØ x 250mm length Stainless steel SDi sensor with a temperature/dew point measurement range of -40° C to +180° C and relative humidity range of 0 to 100.0% RH.
Temperature accuracy is +/- 0.2° C at +20° C.
Humidity accuracy is +/-2% RH.
|
 |
TS250 Relative Humidity/Air Temperature Sensor
High precision 4mmØ x 250mm length Stainless steel SDi sensor with a temperature/dew point measurement range of -40° C to +100° C and relative humidity range of 0 to 98.0% RH.
Temperature accuracy is +/- 0.2° C at +20° C.
Humidity accuracy is +/-2% RH.
|
 |
TS660 40mm Non-Invasive Moisture Sensor
Capacitance non-invasive SDi sensor with a di-electric constant of 40mm (scanning depth) and a measurement range of 0 - 200 digits.
Note: Digits is not a mesaurement of moisture content, it is a relative value.
Capacitance sensors are typically used for shallower determination of moisture in a variety of construction materials.
|
 |
TS610 300mm Non-Invasive Moisture Sensor
Microwave non-invasive SDi sensor with a di-electric constant of 300mm (scanning depth) and a measurement range of 0 - 200 digits.
Note: Digits is not a mesaurement of moisture content, it is a relative value.
Microwave sensors are typically used for deeper determination of moisture in "SOLID" construction materials like concrete, thicker in construction at least 100mm.
|
 |
TS430 Airflow Sensor
High precision 6mmØ x 210mm length Stainless steel SDi sensor with an small airflow measurement range
of 0 to 2 m/s and an air temperature measurement range of 0° C to +50° C.
Airflow accuracy is +/- 0.04 m/s.
Temperature accuracy is +/- 0.7° C.
|
 |
TS470 Airflow Sensor
12mmØ x 200mm length Polycarbonate SDi sensor with an airflow measurement range
of 0 to 20 m/s and an air temperature measurement range of 0° C to +50° C.
Airflow accuracy is +/- 0.2 m/s.
Temperature accuracy is +/- 1° C.
|
 |
TS800 Trace Gas Sensor
12mmØ x 190mm length Polycarbonate SDi sensor with a hydrogen measurement range
of 0 to 1000 ppm.
A rechargeable battery integrated into the control unit (battery pack) is required for actively heating the sensor of the TS800 and enables mobile, cordless, continuous operation of the sensor system for up to four hours.
|
| PROBES |
 |
TS60 Hand Electrode
Heavy duty plastic hand probe with hexagon union nuts used for resistance moisture measurement.
Can be pushing into materials or tapped with a hammer.
Comes with pack of uninsulated pins varying in size from 20mm to 60mm.
|
 |
TS70 Sliding Hammer Electrode
Heavy duty sliding hammer electrode probe with hexagon union nuts used for resistance moisture measurement.
Hammer action drives in and retracts the pins from the building materials.
Uses teflon insulated 60mm pins.
|
 |
TS4 Insulated Deep Wall Probes
2mmØ thin insulated electrodes for moisture measurement in building and timber materials through joints or cross joints.
Suitable for discreet areas where the small diameter hole can easily be covered.
200mm length.
|
 |
TS12 Insulated Deep Wall Probes
4mmØ insulated electrodes for moisture measurement in building and timber materials through joints or cross joints.
Suitable for external EIFS and other cladding materials.
200mm and 300mm lengths available.
|
 |
TS16 Flat Insulated Deep Wall Probes
1mm flat insulated electrodes for moisture measurement in building and timber materials, that can be inserted through the edging/skirting strip and fine cracks.
Suitable for brick venairs etc.
200mm and 300mm lengths available.
|
 |
TS20 Brush Electrodes
7mmØ brush electrodes with an insulated shaft for moisture measurement in homogeneous builing materials.
Suitable for bulk supplies etc.
110mm length.
|
