PLS3GNZ Green Beam Plumb & Level Laser



PLS3G Green Beam Automatic Plumb & Level Laser
click on image to enlarge

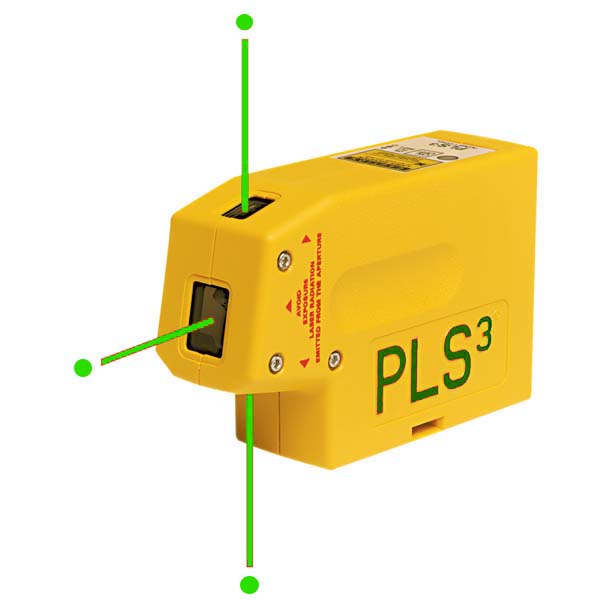

The PLS3GNZ is a self-leveling plumb and level laser with 3 precise extra bright green laser dots.

The PLS has become the well known standard in the construction industry in New Zealand for dot and line laser levels.

The new green beam models, featuring genuine green laser diodes, ensures Pacific Laser Systems place at the forefront of the compact laser industry. Green beam technology means the PLS3GNZ can be seen at longer distances and in brighter light conditions when compared with the standard PLS3NZ red beam.

Fast, reliable and accurate, simply sit the PLS3GNZ on the floor or mount it to a timber stud or metal frame using the wall bracket, and it levels instantly, providing level, plumb up and down references.

The PLS3GNZ is designed for builders, glaziers, electrical technicians, structural steel and joinery, commercial contractors, boat builders and interior fitout contractors.

PLS lasers do not use pendulum locks for their lasers. Their engineers have developed a system that does not require a locking mechanism. If an instrument needs a lock to protect the leveling mechanism, what happens when it falls from a height during use? - 'run to the laser and move the lock into position half way through its fall before it hits the ground?'

About PLS (Pacific Laser Systems)
Pacific Laser Systems started the compact plumbing, squaring and line laser market over 17 years ago in San Francisco, USA. Today, they still have the best quality, widest range of professional plumb, square, level and cross line lasers available anywhere!

PLS lasers are designed for the trade industry, with calibration, servicing and repair available through-out New Zealand through Accurate Instruments.


product features

- Automatic self levelling
- 3 extra bright green laser dots. Plumb up, plumb down & level beams
- Pendulum lock not required
- NZ calibrated, tested and supported
- Parts & service available
- PLS authorised ETN exchange program available



PLS3GNZ specifications

- Accuracy: +/- 6.0mm at 30 metres
- Operating Range: Typically 30 metres (dependant on light conditions)
- Self Leveling Range: +/- 6°
- Weight: 360 grams including battery
- Battery Type: 3 x 'AA' Size Alkaline batteries
- Battery Operating Time: Up to 10 hours
- Warranty: 2 Years




Please note: Standard packages and accessories for the PLS3G can vary in different locations around the world

Calibration Test Certificate
click on image to enlarge


calibration & certification

Once shipped from the manufacturer, Accurate Instruments' Calibration and Service Centres check and adjust all instruments on collimators and ranges, then fit them with the appropriate shockwatch, calibration sticker and issue a test calibration certificate.

Shockwatches a damage indicator that alert the user whether the instrument has been dropped.

The PLS100NZ is checked, calibrated and certified by Accurate Instruments then fitted with a shockwatch.

exclusive NZ authorised dealer

PLS authorised dealer for New Zealand

Accurate Instruments (NZ) Ltd is the New Zealand authorised PLS dealer.




PLS3NZ Standard Package

click on image to enlarge



Standard red beam package includes:

PLS3GNZ laser
NZ Certification sticker - dated calibration
NZ Calibration accuracy certificate - laminated
Shockwatch damage indicator
Magnetic mounting bracket
Base mount
Alkaline batteries
User instruction manual
Soft padded belt pouch
2 Year warranty - NZ authorised dealer approved
ETN exchange program - PLS approved
Parts, calibration, servicing and support available

optional accessories

Marumi MTV1931 Camera Tripod

Inca 5858D
Camera Tripod
Topman TV3230 Heavy Duty Camera Tripod

Inca Pro i3970
H/duty Camera Tripod
PLS 5/8 female to 1/4 male rotating tripod adapter

PLS 5/8" Rotating
Tripod Adapter
PLS FTA1 Base

PLS FTA1
Fine Adjustment Base

enquire for price
