PLS505GNZ Green Beam Automatic Laser Level

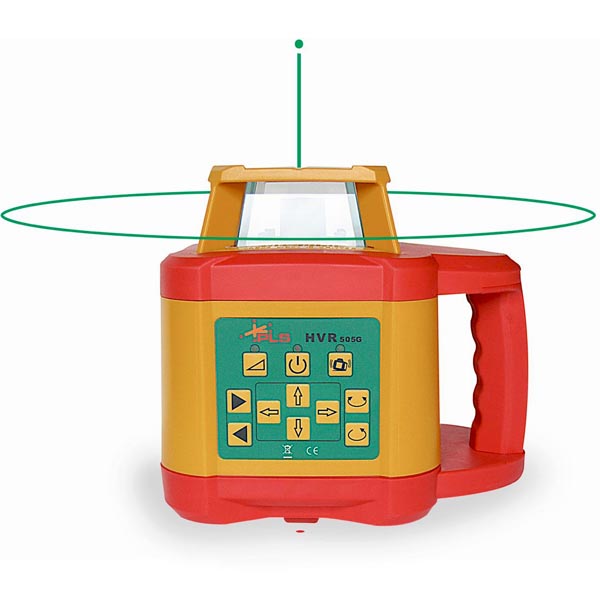

PLS505G Green Beam Automatic Laser Level

click on image to enlarge

download PDF brochure

The PLS505GNZ is an all-purpose horizontal AND vertical self leveling laser level featuring a bright multi-speed rotating green laser beam.

Green beam lasers appear brighter than equivalent red beam models.
It can be used for both outdoor and indoor applications

It has an accuracy specification of +/- 3.0mm at 30 metres.

The PLS505GNZ is designed for general indoor/outdoor leveling applications such as landscaping, decks, re-piling, suspended ceilings and internal fitouts etc.

Featuring automatic vertical self leveling, the 505GNZ can lie on its side, allowing it to be used for stringline setout and squaring of profiles and boxing outside, and partitioning, plumbing and drywall inside.
The 505GNZ also features a scanning function for inside use. The beam can be selected to "scan" back and forth within an area, creating the appearance of a line.
The manual grade slope matching feature allows the operator to align the laser for simple off level grade work such as driveways, basic drainage, raked and compound ceilings.
Many of the laser functions can be operated from the RC505 remote control, with an operating range of up to 20 metres from the laser.

The standard package includes both rechargeable NiMH and alkaline battery power options.

About PLS (Pacific Laser Systems)
Pacific Laser Systems started the compact plumbing, squaring and line laser market over 17 years ago in San Francisco, USA. Today, they still have the widest range of professional plumb, square, level and cross line lasers available anywhere!

PLS is one of the only manufacturers to make parts and service available for their products.

product features

- Bright multi speed rotating Green beam laser with "scanning"
- Electronic horizontal AND vertical self levelling
- 90° square laser dot when used in vertical mode
- Anti Drift turns the laser off if bumped, knocked or disturbed
- Remote control, range up to 20 metres
- Manual dual grade capability for raked ceilings and slope matching
- Alkaline and re-chargeable NiMH battery power options
- 2 year warranty

PLS505GNZ laser specifications

- Horizontal Accuracy: +/-20 arc secs (+/-3.0mm at 30 metres)
- Vertical Accuracy: +/-20 arc secs (+/-3.0mm at 30m)
- Operating Diameter: 300 metres
- Remote Control Range: Up to 20 metres
- Self Levelling Type: Electronic servo motors
- Rotation Speed: 600 RPM, variable
- Laser Type: 532nm, Class 3A
- Water & Dust Protection: Weatherproof to IP64
- Operating Temperature: 0° C to +40° C
- Weight: 2.2kg
- Battery Power: Rechargeable NiMH battery pack
- Battery Life: Approximately 20 hrs
- Warranty: 2 Years

505G laser receiver specifications

- Reception Height: 44mm
- Reception Angle: 90°
- Fine Accuracy Selection: +/-1.0mm
- Standard Accuracy Selection: +/-2.0mm
- Display: Front and rear height
- Speaker Volume: on, off
- Battery Power: 1 x 9V Alkaline battery
- Battery Life: na
- Automatic Shut Off: Yes, after 20 min of no use
- Warranty: 2 Years

click on image to enlarge

calibration & certification

Once shipped from the manufacturer, Accurate Instruments' Calibration and Service Centres check and adjust all instruments on collimators and ranges, then fit them with the appropriate shockwatch, calibration sticker and issue a test calibration certificate.

Shockwatches are a damage indicator that alert the user whether the instrument has been dropped.

The PLS505GNZ is checked, calibrated and certified by Accurate Instruments then fitted with a shockwatch.

exclusive NZ authorised dealer

PLS authorised dealer for New Zealand

Accurate Instruments (NZ) Ltd is the New Zealand authorised PLS dealer.
PLS (Pacific Laser Systems) are located in in San Francisco, California, U.S.A.

Standard ceiling package includes:

PLS505G laser, RC505 remote control, ceiling mount, 2x blue magnetic ceiling targets, rechargeable NiMH battery pack, battery charger, alkaline battery pack, NZ dated calibration sticker, shockwatch, NZ test calibration certificate - laminated, user manual and hard carry case.

Specialised Construction packages are also available.

optional accessories
5m Aluminium Staff with bubble & bag	ELV166 1.6m Elevating Tripod	ELV3000 3m Elevating Tripod	Green Laser Glasses

enquire for price
