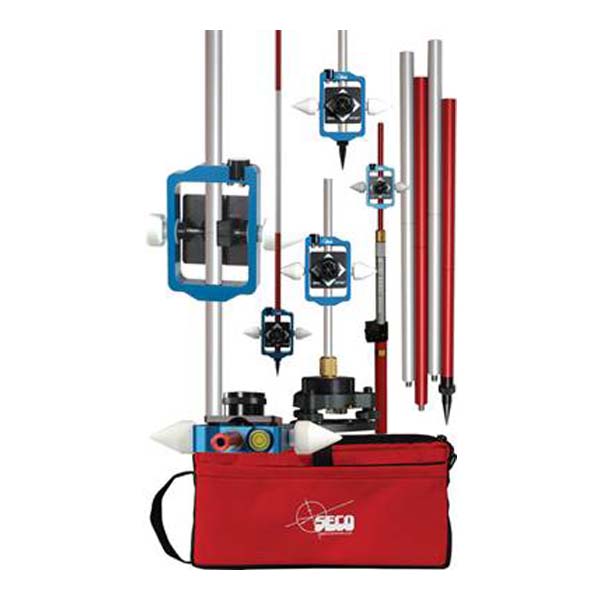

Seco Mini Prism with Pole Kit

CODE: PRISM S-5910-06

The Seco 5910 Mini prism kit system tilts and slides up and down the supplied pin poles.

The system features a 25mm, 0 offset silver-coated prism and a high-quality aluminium holder.

The site cones double as locks and the prism has a 40-minute adjustable vial.

The kit includes four 30.5cm metric graduated pole sections each with a 15.24cm mark. The prism includes an adapter so it can be used on any pole or tribrach adapter with 5/8 x 11 threads.

A system bag is also included to house the components.

Overall weight of the system is 630 grams.

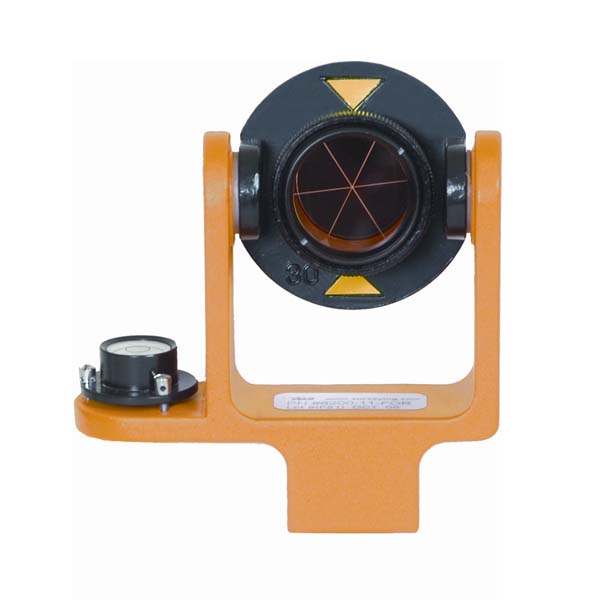

Seco Mini Prism

CODE: PRISM S-6200-11-FLY

The Seco 6200-11 Mini prism is a compact versatile prism system in a small package.
The assembly features a 25 mm copper-coated prism, for fog prevention, a tilting holder, with friction axis and a zero or -30 mm offset.

The tilting holderis powder painted fluorescent yellow with fluorescent targets.
The prism includes a 40-min adjustable circular side-mounted vial assembly and can be mounted onto a prism pole or tribrach at three heights:
- 70 mm
- 100 mm
- 115 mm.

Alternatively, it can be hand-held using the plumb bob bracket or with S-hook for quick attachment to plumb bob.
Also included is a point for stake-out work, and a system bag with belt loop.

Weight of the mini prism is 150 grams.

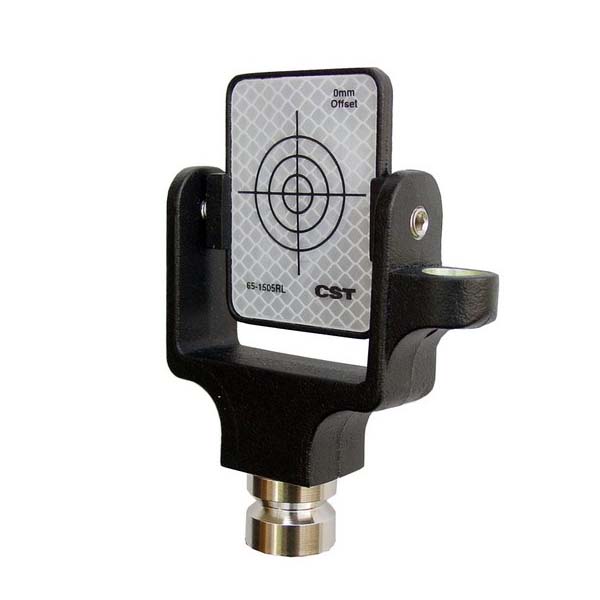

CST 65-1505RL Tilting reflective Mini Prism

CODE: PRISM MINI-REFL

This model CST mini prism is a tilt-adjustable aluminium framed reflective 3M mini prism target with 0mm offset measuring and a built in level bubble.

The bubble is offset to the side for easy viewing.

The mini prism features a 5/8" thread for connection to prism poles, tribrach adaptors and tripods.
Compatible with measuring systems from Nikon, Sokkia and Topcon etc.

Bayonet female to 5/8" thread male adaptor required for Leica & Wild.

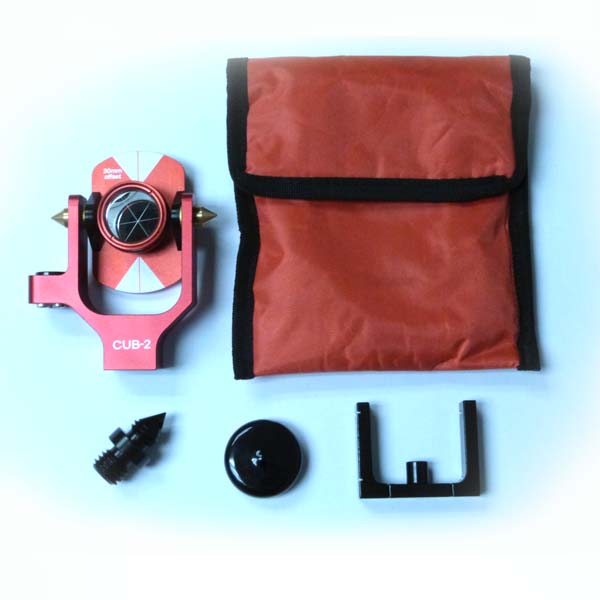

Bear Cub Mini Prism Kit

CODE: PRISM B-CUB MINI

The Bear Cub Midi prism kit includes a 25mm diameter prism with a 0 or -30mm offset.

Featuring a robust metal framed housing and quality prism lens, the Bear Cub Mini is an ideal small compact mini prism for general surveying work.

The set comes with prism point, metal housing with adjustable level bubble, plumb bob attachment, 25mm prism and carry bag with velcro.

Adjustable 8" bubble Female 5/8 x 11" thread

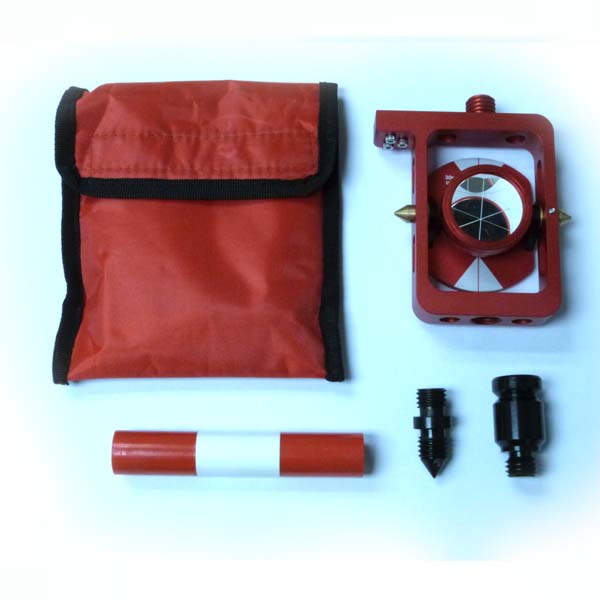

Bear Cub Midi Prism Kit

CODE: PRISM B-CUB-1

The Bear Cub Midi prism kit includes a 38mm diameter prism with a 0 or -30mm offset.

Featuring a robust metal framed housing and quality prism lens, the Bear Cub Midi is an ideal small compact mini prism for general surveying work.

Compared with the Mini model above, the Midi has a larger 38mm prism and includes all the same accessories with the addtion of a male to female adaptor and a small red/wine barber pole. belt loop .

Adjustable 8" bubble Female 5/8 x 11" thread
