Pulsar doseBadge

CODE: SOUND PULSAR DOSEBADGE

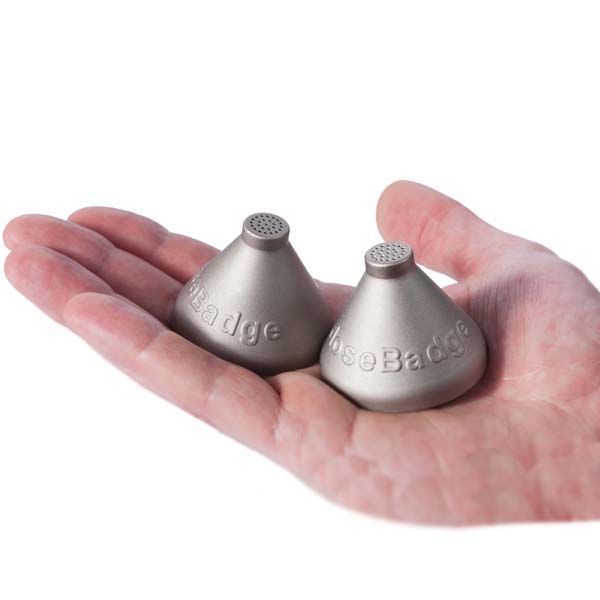

The Pulsar doseBadge is a simple compact and lightweight dosimeter that is worn on the human body and measures the amount of sound that the person wearing the device is exposed to.

Accurately assessing and capturing the true noise exposure of workers is made simple using this innovative device from Pulsar.
This revolutionary personal noise dosimeter is a self-contained noise measurement device (or PSEM), that has no cables, no displays or controls, making it the perfect solution for noise dosimetry, because units cannot be tampered easily with during measurements.

The doseBadge key features are;
- Small, unobtrusive compact design, weighing only 45grams
- Cable-free
- Programmable with compliance for almost all world wide safety regulations
- Infra-red reader with internal acoustic calibrator
- Supplied with dBLink3 software


The Model 22 doseBadge communicates with an infra-red reader unit, similar technology to a television remote control.
The Reader Unit controls the doseBadge to program, calibrate, start-stop, download and store measurements.
All key measurement parameters can be viewed on the large clear backlit screen of the Reader Unit, which also displays a time history graph of worker's daily noise exposure.
The Reader Unit contains an integral acoustic calibrator allowing the doseBadge to be calibrated prior to and following each measurement in accordance with international regulations.

Worldwide Occupational or Industrial Noise Regulations require the typical daily exposure of an individual worker to be determined.
Health and Safety requirements state that the noise exposure for an employee should not exceed 85 dBA over an 8 hour period.
This measurement is often referred to as an LEX or LEX8 value.

The Model 22 doseBadge system can be purchased as a 1, 2, 5 or 10 dosimeter kit. Additional doseBadges can be purchased individually.

Downloading Sound Level

The Model 22 is supplied standard with the dBLink3 software package.
This easy to use, compatible with Windows operating systems, features an integrated step by step wizard, which guides the user through the setup and download procedures.
Uisng the dBLink software, the operator can to quickly analyse and transform the raw data into informative report formats, simplifying a potentially complex and time consuming process.

3 pre-formatted report types are provided to present the measurement data. These reports can be printed or exported into Microsfot Word, Excel or Adobe PDF formats.

Additionally, the Model 22 doseBadge measures and logs a Full 'Time History' or 'Noise Profile'.
This information allows you to determine when key noise problems occur during a worker's day. The additional 'C' weighted peak Time History allows you to fully assess risks from impulsive noise in the workplace.
