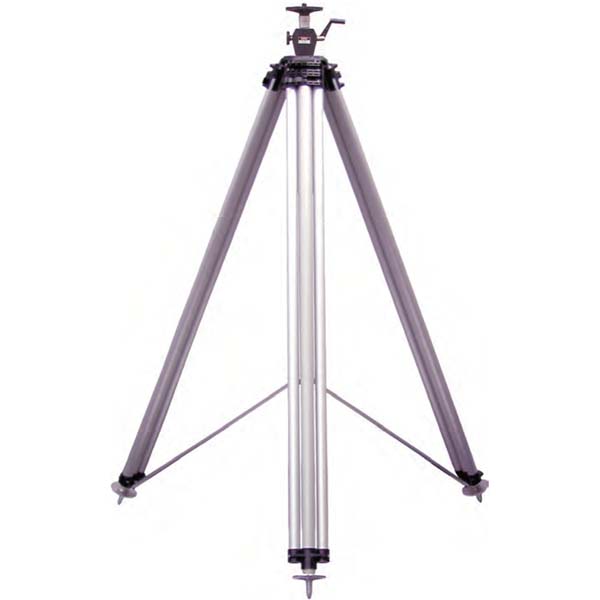

CST/berger 60-MCTE Height Elevating Tripod

CODE: TRIPOD CST-ELV

The 60-MCTE from CST/berger is a specialised heavy duty height adjustable aluminium tripod with a maximum height of 4.4metres.

It features adustable leg lengths as well as a wind up column (using handle) to reach this height.

It is specifically designed for large scale machine control, civil contracting and drainage applications where multiple heights from the same location are required on site.

Lever clamps lock the legs in place securely.
3 safety bars at the bottom of the tripod lock into place to prevent slippage of the legs.


Product specifications
.
- Thread type: 5/8" Whitworth
- Material: Aluminium
- Height Closed: 2.2m
- Height Fully Extended: 4.4m
- Weight: 15.5 kilograms

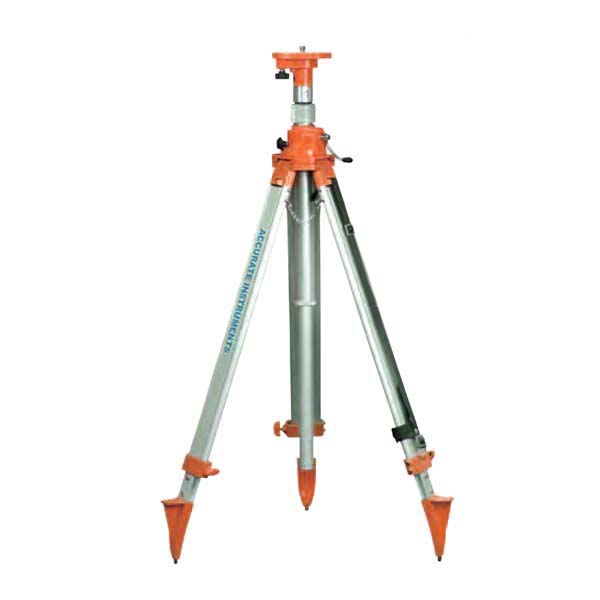

ELV4000 Height Elevating Tripod

CODE: TRIPOD ELV-4000

The ELV4000 is a heavy duty height adjustable aluminium tripod with a maximum height of 4metres.

It features adjustable legs, a lifting shaft as well as a wind up column (using handle) to reach this height.

It is ideally suited to a wide range of levelling equipment when multiple heights from the same location are required on site.

Screw clamps for leg adjustment.
Safety chains to prevent slippage of the legs.


Product specifications
.
- Thread type: 5/8" Whitworth
- Material: Aluminium
- Height Closed: 1.3m
- Height Fully Extended: 4.00m
- Weight: 6.7 kilograms

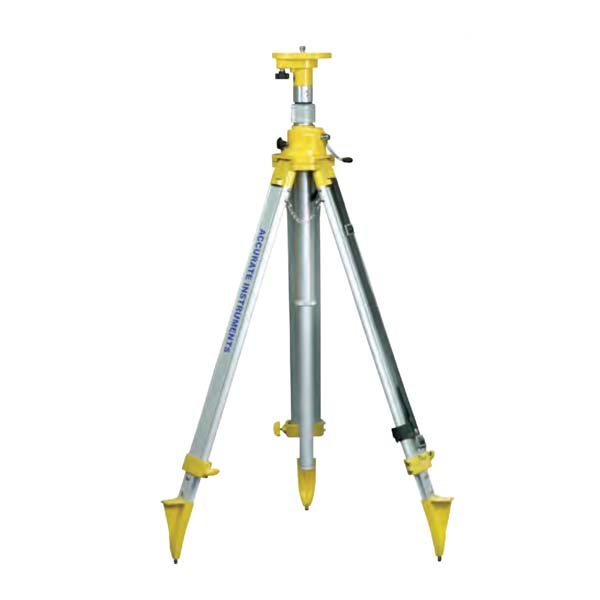

ELV3000 Height Elevating Tripod

CODE: TRIPOD ELV-3000

The ELV3000 is a heavy duty height adjustable aluminium tripod with a maximum height of 3metres.

It features adjustable legs, a lifting shaft as well as a wind up column (using handle) to reach this height.

It is ideally suited to a wide range of levelling equipment when multiple heights from the same location are required on site.

Screw clamps for leg adjustment.
Safety chains to prevent slippage of the legs.


Product specifications
.
- Thread type: 5/8" Whitworth
- Material: Aluminium
- Height Closed: 1.28m
- Height Fully Extended: 3.05m
- Weight: 6.3 kilograms

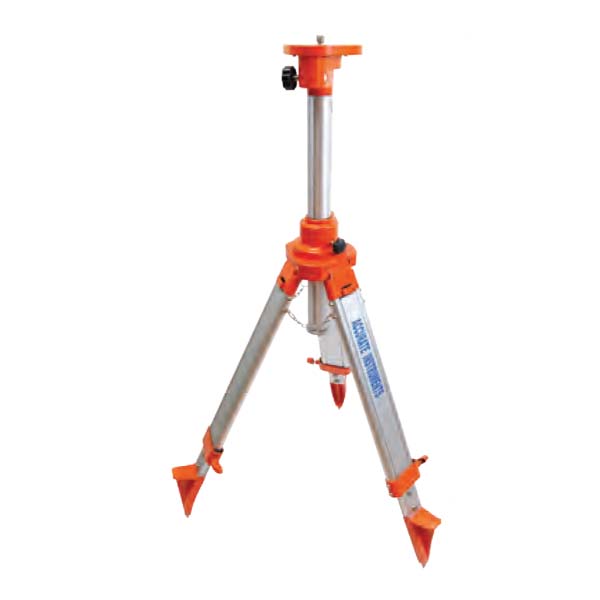

ELV166 Height Elevating Tripod

CODE: TRIPOD ELV-166

The ELV166 is a compact heavy duty height adjustable aluminium tripod with a maximum height of 1.6metres.

It features adjustable legs as well as a wind up column (using handle) to reach this height.
It is iIdeal for internal fitout use or where laser height adjustment is required in limited spaces.

Screw clamps for leg adjustment.
Safety chains to prevent slippage of the leg.


Product specifications
.
- Thread type: 5/8" Whitworth
- Material: Aluminium
- Height Closed: 0.91m
- Height Fully Extended: 1.66m
- Weight: 4.65 kilograms
