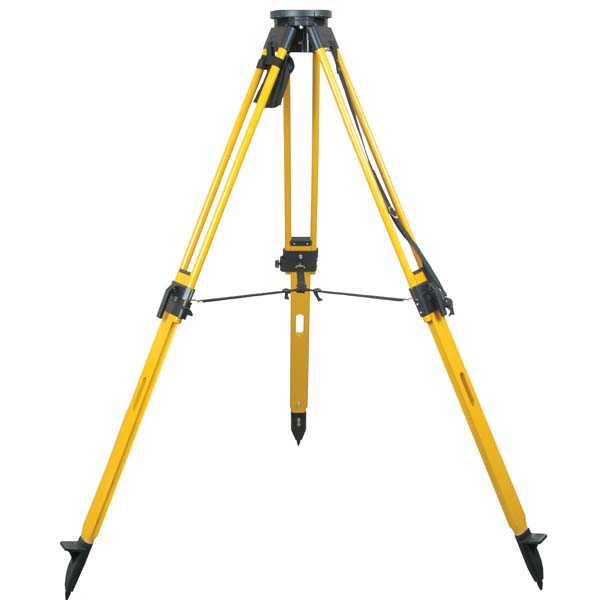

The Seco 5220-10 model Wooden Tripod features a 6.5-inch flat head with a standard 5/8 x 11 thread.
It features a dual locking Quick Clamp and Twist-Lock system which provides extra security at height whilst the leg stabilizer straps ensure tripod stays stable and in place.
The 5220-10 will extend to a maximum of 183cm and collapse down to 118 cm.
A tool kit, which attaches to any leg, includes an open-end wrench and an allen wrench for making any adjustments to the tripod.
The wood legs have a hand hole for easy carrying whilst the shoulder strap makes for comfortable carrying over longer distances.
Weighs 7.48 kg.
Suitable for conventional & robotic Total Stations, Theodolites and GPS base stations.

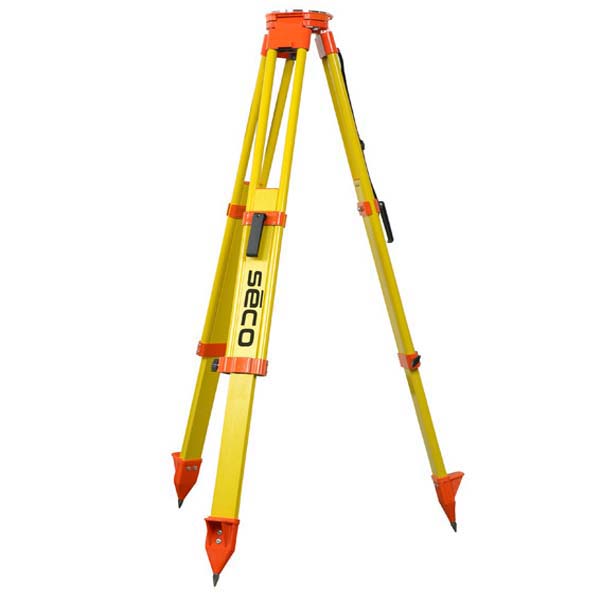

The Seco 90582 model is a standard weight Fiberglass Tripod made in North America under strict quality controls.
It has a 6-5/8-inch flat head with large center hole (2-5/8-inch) to facilitate an easy set-up over a point with a 5/8 x 11 thread.
The fiberglass leg locks are a Dual Clamp configuration that includes 2 different lock types; Quick Clamp and Screw Clamp leg locks.
The tripod foot is equipped with a replaceable point made of hardened steel and the 90582 tripod comes with shoulder strap for comfortable carrying over longer distances.
The Seco 90582 Fiberglass Tripod will extend to a maximum of 178cm.

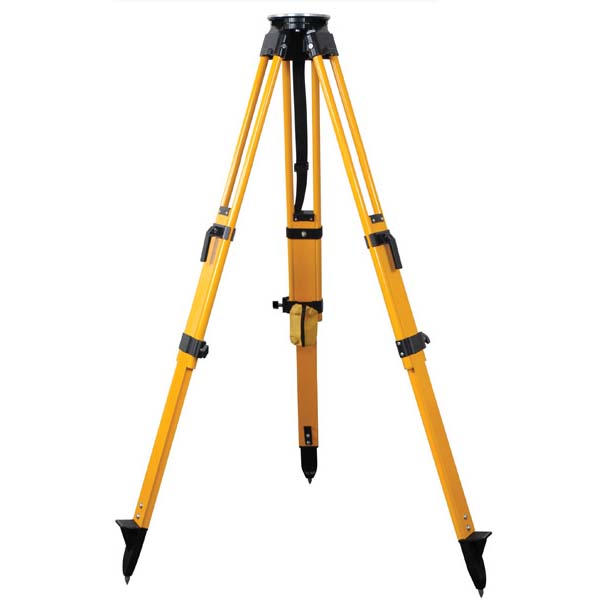

The Seco 5203 model Fiberglass Tripod is a stable and accurate portable tripod, perfect for mechanically driven total stations and survey grade theodolites and levels, these tripods stand up to demanding field conditions.
The 5/8 x 11 thread accommodates standard surveying and laser instruments and is ideal for many different applications.
The fiberglass leg locks are a Dual Clamp configuration that includes 2 different lock types; Quick Clamp and Twist-Lock leg locks.
The tripod head is dimensionally round in shape with a flat machined head.
The Seco 5203 Fiberglass Tripod will extend to a maximum of 180cm.

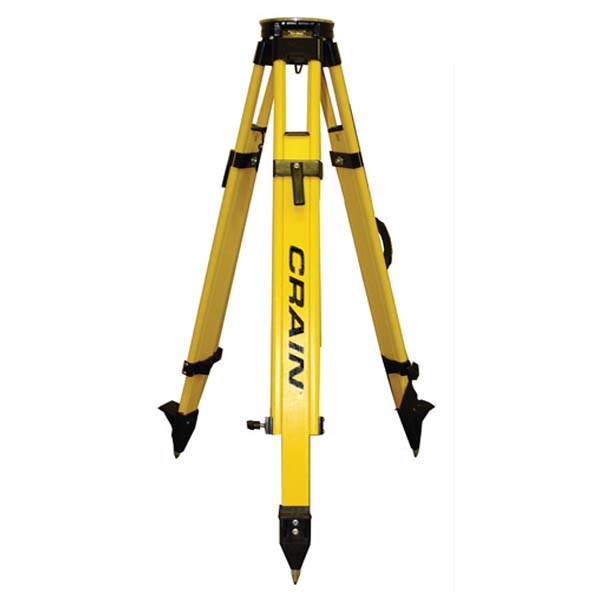

The Trimax/Crain 90553 is an advanced composite fiberglass tripod, with a dual clamping system.
The Trimax is the only surveying grade tripod with certified accuracy, highly recommended for all servo driven and robotic total stations, 3D laser scanners or large construction lasers.
It features a 6.5-inch flat head with a standard 5/8 x 11 thread and large centre hole (2-5/8 inch) to facilitate an easy set-up over a point.
A retaining system, which prevents leg kick out and accidental falls on smooth surfaces, is stored on the inside of the leg and can be left in place when the tripod is not in use.
The shape and size of the foot are designed to allow for a solid placement on any terrain and the foot is equipped with a replaceable point and a retention loop for use with a safety strap.
The Trimax composite tripod will extend to a maximum of 180cm and collapse down to 113 cm.
Weighing 7.7 kg, the Trimax can handle equipment weighing up to 30kg.
