download PDF User Manual

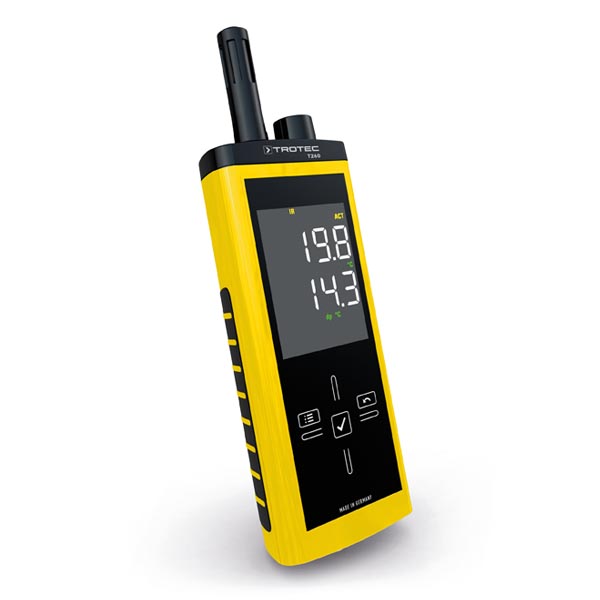

Trotec T260

CODE: TEMP TROTEC T260

New for 2014, the Trotec T260 follows the popular T250 thermo-hygrometer.
It is a quality German manufactured handheld thermo-hygrometer capable of measuring air temperature, relative humidity, absolute humidity, mixing ration and dew point temperature.

Additional features to the T210 model below, include a built-in laser pyrometer and a dew point alarm. This allows the T260 to also measure surface temperature.
The Dew Point alarm is user settable to alert the user when readings become to low.

The new T260 features a scratch-resistant 2.7 inch colour TFT touchscreen, with high contrast colour graphics that can be viewed even in direct sunlight.

Ideal for the measurement of concrete moisture, controlled environments, laboratories, painting booths, hvac, storage facilities, room temps etc.

If required, this product can be tested and issued with an IANZ calibration certificate.

The previous model T250 thermo-hygrometer is available for HIRE.


Product specifications
.
- Measurement Type: Air temperature, relative humidity, dew point, surface temperature
- Measurement Units Relative Humidity: %rh, g/m3, g/kg, gr/lb
- Measurement Range Relative Humidity: 0 - 100% rh
- Accuracy Relative Humidity: +/- 2%
- Measurement Units Temperature: ° C, ° F
- Measurement Range Air Temperature: -20 to +50 ° C
- Accuracy Air Temperature: +/-0.2 ° C between 0 - 40 ° C
- Measurement Range Surface Temperature: -70 to +380 ° C
- Accuracy Surface Temperature: +/-0.5 ° C
- Optical Resolution (Spot Size): 12:1
- Weight: 295 grams
- Battery Type: 4x AA alkaline
- Warranty: 1 Year

Standard package includes: T260, screen protector, 4x AA alkaline batteries, quick reference guide, factory calibration certificate, soft zip case with belt loop.

download PDF User Manual

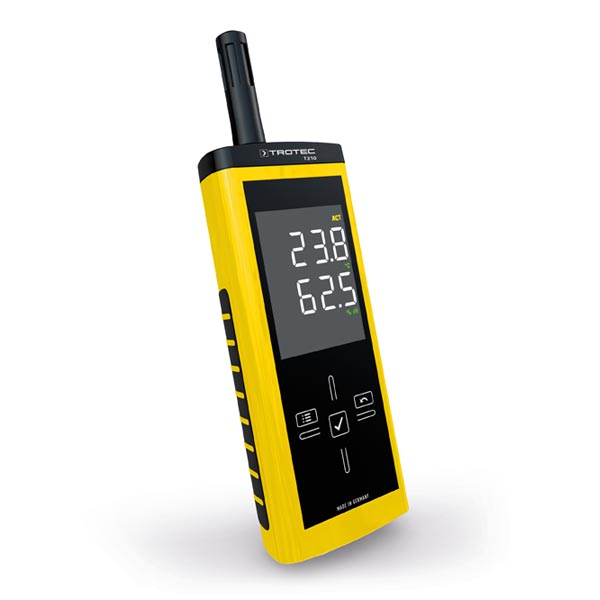

Trotec T210

CODE: TEMP TROTEC T210

The Trotec T210 is a high quality German manufactured handheld thermo-hygrometer capable of measuring air temperature, relative humidity, absolute humidity, mixing ration and dew point temperature.

The new T210 features a scratch-resistant 2.7 inch colour TFT touchscreen, with high contrast colour graphics that can be viewed even in direct sunlight.

Ideal for the measurement of concrete moisture, controlled environments, laboratories, painting booths, hvac, storage facilities, room temps etc.

If required, this product can be tested and issued with an IANZ calibration certificate.


Product specifications
.
- Measurement Type: Air temperature, relative humidity, dew point, surface temperature
- Measurement Units Relative Humidity: %rh, g/m3, g/kg, gr/lb
- Measurement Range Relative Humidity: 0 - 100% rh
- Accuracy Relative Humidity: +/- 2%
- Measurement Units Temperature: ° C, ° F
- Measurement Range Air Temperature: -20 to +50 ° C
- Accuracy Air Temperature: +/-0.2 ° C between 0 - 40 ° C
- Weight: 290 grams
- Battery Type: 4x AA alkaline
- Warranty: 1 Year

Standard package includes: T210, screen protector, 4x AA alkaline batteries, quick reference guide, factory calibration certificate, soft zip case with belt loop.

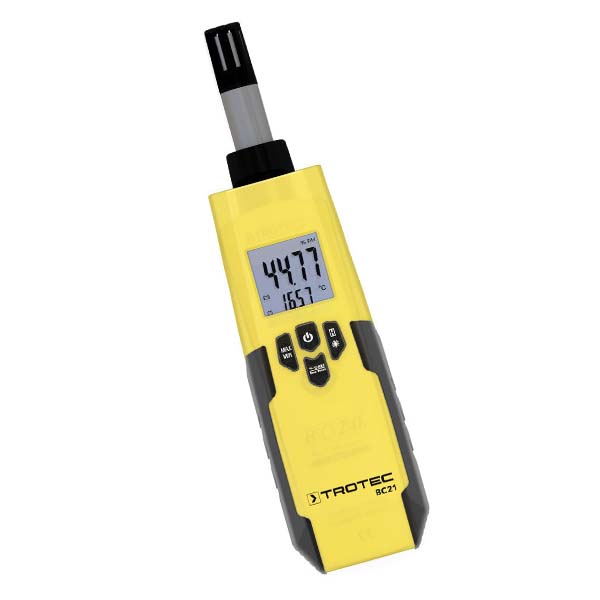

Trotec BC21

CODE: TEMP TROTEC BC21

The Trotec BC20 is a "basic" DIY handheld thermo-hygrometer capable of measuring air temperature, relative humidity, dew point & wet bulb temperature.

Unlike the lower cost BC05 model, additional dew point and wet bulb measurements can be determined using this model.

The hygrometric sensor features a robust stainless steel housing and the BC21 has a backlight display which can be turned on for use in low light situations or at night time.

Note: For the trade professional models, see the T210 and T260 above.

The BC21 is NOT suitable for measuring the RH% of moisture in concrete.

Ideal for the simple measurement of home or office environments, painting booths, hvac, room temps etc.


Product specifications
.
- Measurement Type: Air temperature, relative humidity, dew point, wet bulb
- Measurement Units Relative Humidity: %rh
- Measurement Range Relative Humidity: 5 - 95% rh
- Accuracy Relative Humidity: +/- 2.5%
- Measurement Units Temperature: ° C, ° F
- Measurement Range Temperature: -30 to +100 ° C (-22 to 199 ° F)
- Accuracy Temperature: Typically +/-1 ° C
- Weight: 200 grams
- Battery Type: 1x 9V
- Warranty: 1 Year

Standard package includes: BC21, 1x 9V battery, operating manual (download), case.

download PDF brochure

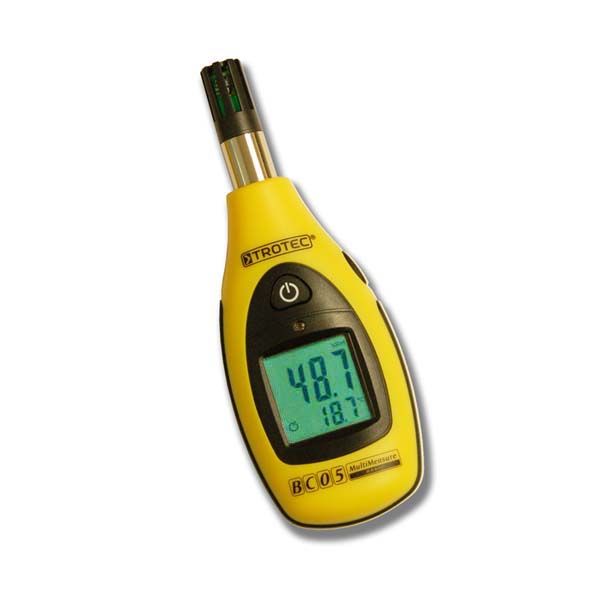

Trotec BC05

CODE: TEMP TROTEC BC05

The Trotec BC05 is a "basic" compact DIY handheld thermo-hygrometer capable of measuring air temperature and relative humidity.

Simple to operate, the large clear LCD displays either the air temperature or humidity data.
The operator can toggle between maximum and minimum temperature or humidity values on the BC05 while current values are displayed.

Small, portable and compact, the BC05 weighs only 135grams and fits in the palm of your hand. This makes it suitable for transporting from location to location.

The display automatically illuminates in low light situations or at night time.

Note: For trade professional models, see the T210 and T260 above.
The BC05 is NOT suitable for measuring the RH% of moisture in concrete.

Ideal for the simple measurement of home or office environments, painting booths, hvac, room temps etc.


Product specifications
.
- Measurement Type: Air temperature, relative humidity
- Measurement Units Relative Humidity: %rh
- Measurement Range Relative Humidity: 5 - 95% rh
- Accuracy Relative Humidity: +/- 5%
- Measurement Units Temperature: ° C, ° F
- Measurement Range Temperature: -20 to +60 ° C (-4 to 140 ° F)
- Accuracy Temperature: Typically +/-2 ° C
- Weight: 138 grams
- Battery Type: 1x 9V
- Warranty: 1 Year

Standard package includes: BC05, 1x 9V battery, operating manual, soft case.
