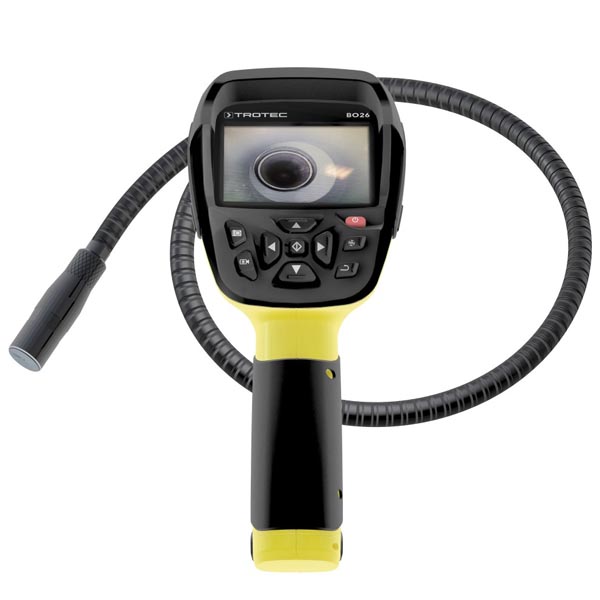

Trotec BO26 Recordable Videoscope

CODE: END TR BO26

The new Trotec BO26 is a videoscope capable of recording still images and video.

The BO26 comes standard with a semi rigid adjustable 17mm diameter probe, 1 meter in length. 1m extensions are available as well as more compact 9mm and 6mm cameras.

Our biggest selling product from the videoscope/endoscope range, the BO26 is popular for it's ease of use and economical price.
With a CMOS imaging sensor, 320x240 image quality and 30 FPS (frames per second) recording rate, both still images and recorded videos at clearly displayed on the colour LCD display. Video sequences and can be watched via an external TV screen or transferred to a PC, if required.

The BO26 is supplied with a removable 32GB SD card memory whic is used for file storage of the saved images and video.
The 4x LED light source has adjustable brightness settings for variable levels of darkness and the BO25 supports JPEG images format, MPEG4, AVI and 3GP video formats. Additional magnetic tip and clip-on mirrors allow for side viewing in difficult to view places.

Optional 9mm and 6mm diameter probes available in 1 and 3 metre lengths.

This model videoscope is suitable for insulation and building moisture inspection, marine, general engineering and fabrication.

From October 2015, this videoscope is available for HIRE.


Product specifications
.
- Probe Diameter: 17mm (9mm and 6mm diameter probes available)
- Probe Length: 1 meter (extensions available)
- Probe Rigidity: Semi rigid (can be bent to shape)
- Minimum Focussing Distance: 50mm
- Image Sensor: 1/4 inch CMOS
- Image/Video Resolution: 320 x 240 pixels
- Image/Video File Formats: JPEG/ MPEG4, AVI, 3GP
- Frame Rate: 30 FPS (frames per second)
- Screen Size: 3.5 inch LCD
- Screen Resolution: 320 x 240 pixels
- Light Source: 4x LED's
- Battery Type: 3.7V Lithium Ion
- Weatherproof Probe: Yes, IP67
- Weight: 580 grams (1m probe, including battery)


Standard package includes: BO26 with 1m, ø17mm probe, 3.7V lithium battery, side view mirror, clip-on hook & magnetic attachments, SD card, headset, USB charger, instruction guide, hard carry case.

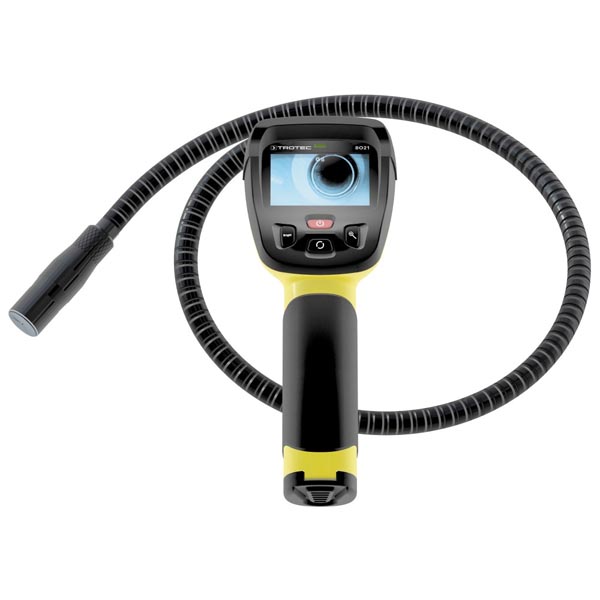

Trotec BO21 Inspection Camera

CODE: END TR BO21

The Trotec BO21 is a simple to use low cost inspection camera with a semi rigid adjustable 17mm diameter probe, 1 meter in length.

This model is not capable of recording digital images or video.
See the BO26 recordable videoscope above.

Economical, lightweight and very easy to use, the BO21 has a rechargeable 3.7V lithium-ion battery and an IP67 waterproof rated camera probe end.
With a CMOS imaging sensor, 320x240 image quality and 30 FPS (frames per second) update rate, real-time images are clearly displayed on the 3 inch colour LCD display.

The 4x LED light source has adjustable brightness settings for variable levels of darkness and the BO21 has a minimum focussing distance of 50mm.
Additional magnetic tip and clip-on mirrors allow for side viewing in difficult to view places.

This model inspection camera is suitable for all general endoscope camera inspections where images and videos do not need to be recorded.

Optional 1m extensions and hard transport cases available.


Product specifications
.
- Probe Diameter: 17mm
- Probe Length: 1 meter (extensions available)
- Probe Rigidity: Semi rigid (can be bent to shape)
- Minimum Focussing Distance: 50mm
- Image Sensor: 1/4 inch CMOS
- Frame Rate: 30 FPS (frames per second)
- Screen Size: 2.4 inch LCD
- Screen Resolution: 320 x 240 pixels
- Light Source: 4x LED's
- Battery Type: 3.7V Lithium Ion
- Weatherproof Probe: Yes, IP67
- Weight: 590 grams (1m probe, including battery)


Standard package includes: BO21 with 1m probe, 3.7V lithium battery, side view mirror, clip-on hook & magnetic attachments, USB charger, instruction guide, blister packaging.
